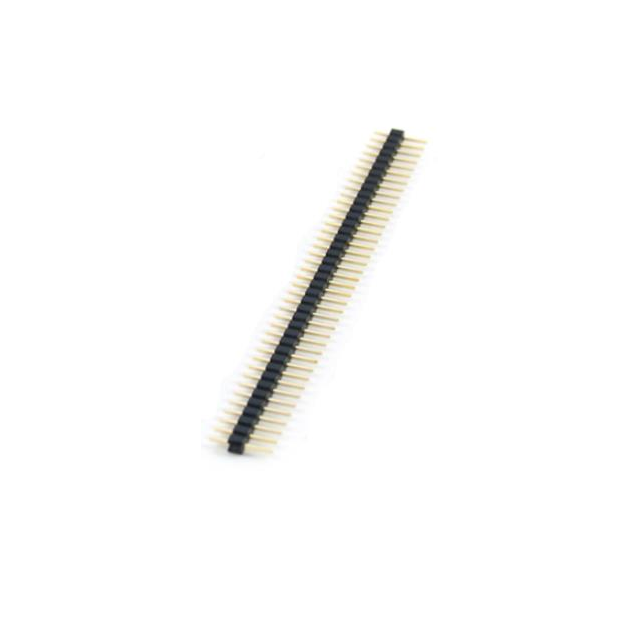

2112-1X40G00SB

Active

Oupiin

GOLD 1A STRAIGHT POLICY 2MM 40P 3.9MM -40℃~+105℃ 2.8MM 2MM SINGLE ROW BRASS BLACK PLUGIN,P=2MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

2112-1X40G00SB

Active

Oupiin

GOLD 1A STRAIGHT POLICY 2MM 40P 3.9MM -40℃~+105℃ 2.8MM 2MM SINGLE ROW BRASS BLACK PLUGIN,P=2MM PIN HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2112-1X40G00SB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.154 in
Contact Length - Mating	3.9 mm
Contact Length - Post [x]	0.11 in
Contact Length - Post [x]	2.8 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	8.7 mm
Overall Contact Length	0.343 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

2112 Series

Part	Number of Rows	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Mounting Type	Shrouding	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Fastening Type	Connector Type	Insulation Height	Insulation Height	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post
Oupiin 2112-1X02G00RB	1	Flash	0.079 in	2 mm	Male Pin	Through Hole Right Angle	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	2	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)
Oupiin 2112-2X03G00SB	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	6	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8.7 mm	0.343 in
Oupiin 2112-2X20G00SB	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	40	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8.7 mm	0.343 in
Oupiin 2112-2X05G00SB	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	10	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8.7 mm	0.343 in
Oupiin 2112-2X15G00SB	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	30	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8.7 mm	0.343 in
Oupiin 2112-1X40G00SB	1	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	40	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)			8.7 mm	0.343 in
Oupiin 2112-2X07G00SB	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	14	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8.7 mm	0.343 in
Oupiin 2112-2X02G00SB	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	4	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8.7 mm	0.343 in
Oupiin 2112-2X05G00S-3-3B	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.118 in	3 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0			Solder	10	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8 mm	0.315 in	0.118 in	3 mm
Oupiin 2112-2X36G00SB	2	Flash	0.079 in	2 mm	Male Pin	Through Hole	Unshrouded	All	0.154 in	3.9 mm	Gold	Black	Gold	-40 °C	105 ░C	Square	UL94 V-0	0.11 in	2.8 mm	Solder	72	Brass	Flash	Push-Pull	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	8.7 mm	0.343 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.72
LCSC	Piece	1	$ 0.40
		200	$ 0.15
		500	$ 0.15
		1000	$ 0.15

Description

General part information

2112 Series

Connector Header Through Hole 40 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
