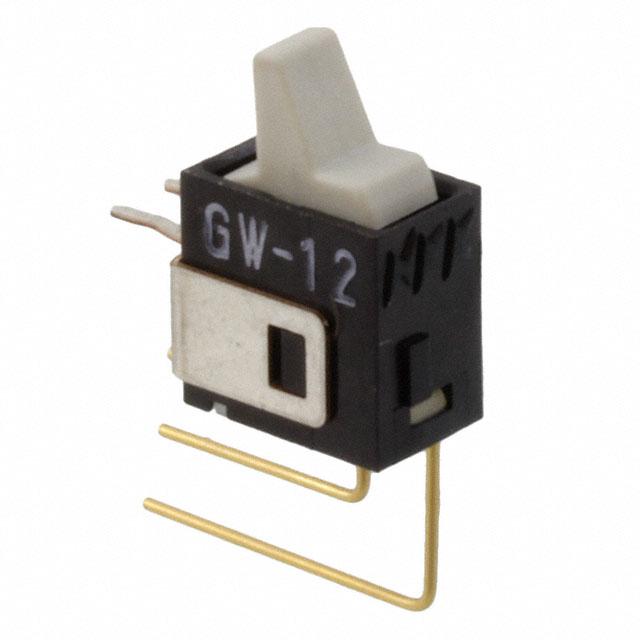

GW12LHV

Active

NKK Switches

SWITCH ROCKER ON NONE ON SPDT PC PINS PADDLE 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER ON NONE ON SPDT PC PINS PADDLE 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Technical Specifications

Parameters and characteristics for this part

Specification	GW12LHV

Actuator Marking	No Marking
Actuator Type	Paddle
Approval Agency	CSA, UL
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Electrical Life	Features	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Actuator Marking	Termination Style	Circuit	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Approval Agency
NKK Switches GW12LHV	0.4 VA	50000 Cycles	Sealed - Flux Protection	On-On	28 V	28 V	No Marking	PC Pin	SPDT	Right Angle Through Hole Vertical	-30 ░C	85 °C	Paddle	CSA UL
NKK Switches GW12LHP	0.4 VA	50000 Cycles	Sealed - Flux Protection	On-On	28 V	28 V	No Marking	PC Pin	SPDT	Through Hole	-30 ░C	85 °C	Paddle	CSA UL
NKK Switches GW12LHH	0.4 VA	50000 Cycles	Sealed - Flux Protection	On-On	28 V	28 V	No Marking	PC Pin	SPDT	Through Hole Right Angle	-30 ░C	85 °C	Paddle	CSA UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle, Vertical
