8501KPR12V36

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

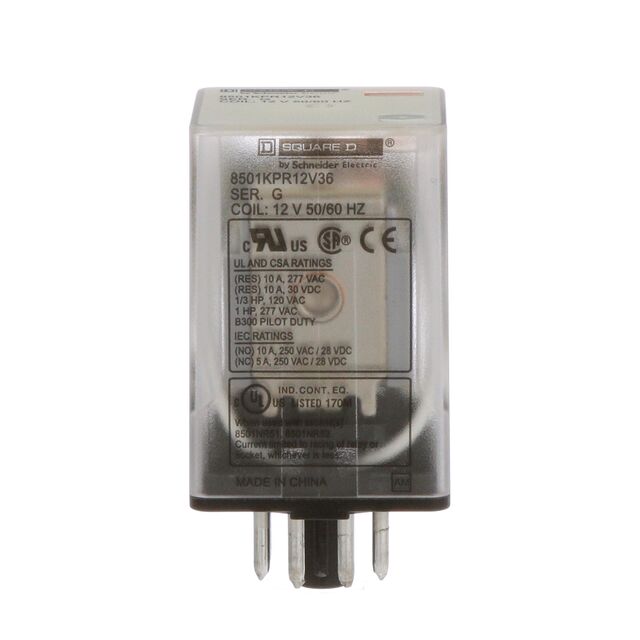

RELAY 2CO CYL PINS 10A@240V 12VA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8501KPR12V36

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO CYL PINS 10A@240V 12VA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8501KPR12V36

Coil Type	Non Latching
Coil Voltage	12 VAC/DC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Load - Max Switching	3000 VA, 300 W
Mounting Type	Chassis Mount
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	300 VAC, 30 VDC
Termination Style	Plug In, 8 Pin (Octal)

8501KP Series

Part	Contact Rating (Current)	Relay Type	Contact Material	Operate Time	Coil Type	Termination Style	Mounting Type	Coil Voltage	Load - Max Switching	Release Time	Contact Form	Switching Voltage [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR13V14	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 11 Pin (Octal)	Chassis Mount	24 VAC	300 W 3000 VA	20 ms	3PDT (3 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12V36	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Chassis Mount	12 VAC/DC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPDR12V56	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Chassis Mount	48 VDC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12V14	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Socketable	24 VAC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPDR12P14V53	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Socketable	24 VDC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12P14V24	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 11 Pin (Octal)	Socketable	240 VAC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C	Lighted Indicator
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12P14V14	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 11 Pin (Octal)	Chassis Mount	24 VAC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.50

Description

General part information

8501KP Series

General Purpose Relay DPDT (2 Form C) 12VAC Coil Chassis Mount
