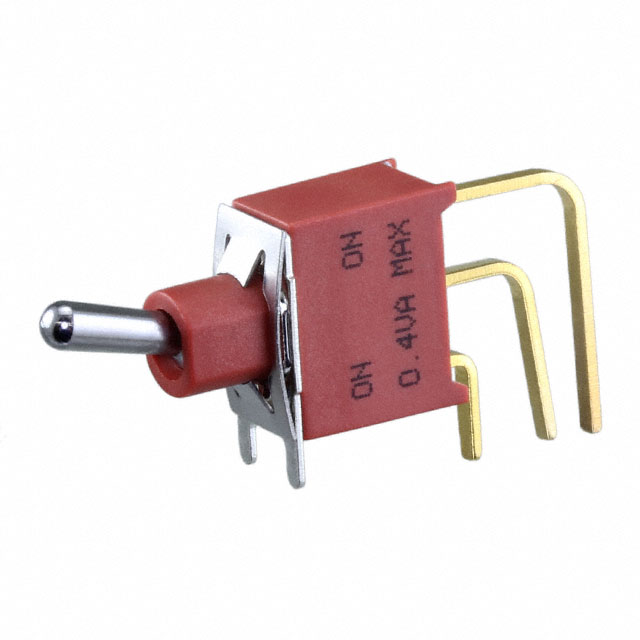

34BWSP12B4M7RT

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

34BWSP12B4M7RT

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	34BWSP12B4M7RT

Actuator Length [x]	7.6 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

34BWSP Series

Part	Illumination	Electrical Life	Ingress Protection	Actuator Type	Actuator Length [x]	Circuit	Actuator Material	Voltage Rating - DC	Bushing Thread	Switch Function	Features	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Mounting Type
Grayhill Inc. 34BWSP51B1M1QT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	10.6 mm	SPDT	Brass Chrome Plated	28 V	1/4-40	On-Off-Mom	Epoxy Sealed Terminals	0.25 in	-30 ░C	85 °C	125 V	5 A	Solder Lug
Grayhill Inc. 34BWSP11B4M1RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	12.6 mm	SPDT	Brass Chrome Plated	20 V	Unthreaded	On-On	Epoxy Sealed Terminals		-30 ░C	85 °C	20 V	0.4 VA	Solder Lug
Grayhill Inc. 34BWSP31B1M1RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	10.6 mm	SPDT	Brass Chrome Plated	20 V	1/4-40	On-Off-On	Epoxy Sealed Terminals	0.25 in	-30 ░C	85 °C	20 V	0.4 VA	Solder Lug
Grayhill Inc. 34BWSP41B4V3RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	12.6 mm	SPDT	Brass Chrome Plated	20 V	Unthreaded	Mom-Off-Mom	Epoxy Sealed Terminals		-30 ░C	85 °C	20 V	0.4 VA	PC Pin	Through Hole
Grayhill Inc. 34BWSP12B4M7RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	7.6 mm	SPDT	Brass Chrome Plated	20 V	Unthreaded	On-On	Epoxy Sealed Terminals		-30 ░C	85 °C	20 V	0.4 VA	PC Pin	Right Angle Through Hole Vertical
Grayhill Inc. 34BWSP32B1M2QT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	5.5 mm	SPDT	Brass Chrome Plated	28 V	1/4-40	On-Off-On	Epoxy Sealed Terminals	0.25 in	-30 ░C	85 °C	125 V	5 A	PC Pin
Grayhill Inc. 34BWSP12B4M2RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	7.6 mm	SPDT	Brass Chrome Plated	20 V	Unthreaded	On-On	Epoxy Sealed Terminals		-30 ░C	85 °C	20 V	0.4 VA	PC Pin	Through Hole
Grayhill Inc. 34BWSP12B4M6RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	7.6 mm	SPDT	Brass Chrome Plated	20 V	Unthreaded	On-On	Epoxy Sealed Terminals		-30 ░C	85 °C	20 V	0.4 VA	PC Pin	Through Hole Right Angle
Grayhill Inc. 34BWSP41B4V2RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	12.6 mm	SPDT	Brass Chrome Plated	20 V	Unthreaded	Mom-Off-Mom	Epoxy Sealed Terminals		-30 ░C	85 °C	20 V	0.4 VA	PC Pin	Through Hole
Grayhill Inc. 34BWSP51B1M2RT	Non-Illuminated	50000 Cycles	IP67 - Dust Tight Waterproof	Standard Round	10.6 mm	SPDT	Brass Chrome Plated	20 V	1/4-40	On-Off-Mom	Epoxy Sealed Terminals	0.25 in	-30 ░C	85 °C	20 V	0.4 VA	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.49
		10	$ 4.05
		25	$ 3.84
		50	$ 3.68
		100	$ 3.56

Description

General part information

34BWSP Series

Toggle Switch SPDT Through Hole, Right Angle, Vertical
