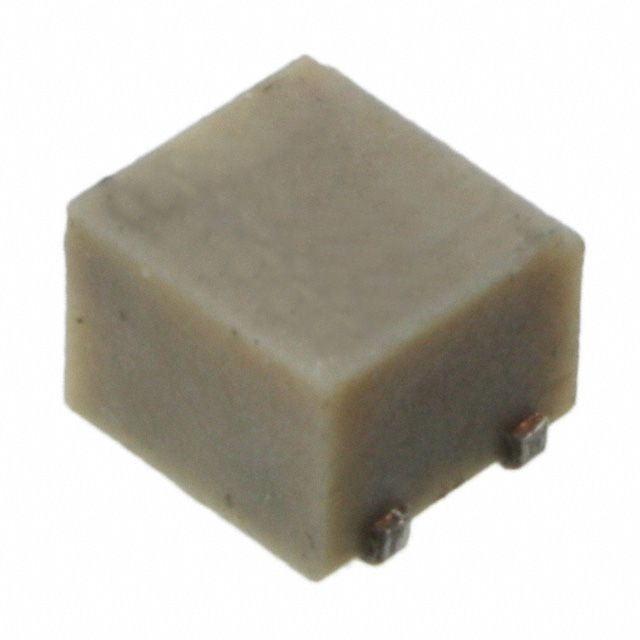

44JR10KLFT7
ActiveTT Electronics/BI
TRIMMER 10KOHM 0.25W J LEAD SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
44JR10KLFT7
ActiveTT Electronics/BI
TRIMMER 10KOHM 0.25W J LEAD SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 44JR10KLFT7 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 9 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 10000 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 0.19 " |
| Size / Dimension [x] | 4.83 mm |
| Size / Dimension [y] | 4.57 mm |
| Size / Dimension [y] | 0.18 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 10 % |
44JR Series
| Part | Termination Style | Resistance | Temperature Coefficient | Resistive Material | Number of Turns | Power (Watts) | Power (Watts) | Adjustment Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI | Gull Wing | 5 kOhms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 5.03 mm | 4.83 mm | 0.198 " | 0.19 in | 10 % | Surface Mount |
TT Electronics/BI | Gull Wing | 25 kOhms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 5.03 mm | 4.83 mm | 0.198 " | 0.19 in | 10 % | Surface Mount |
TT Electronics/BI | Gull Wing | 20 kOhms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 5.03 mm | 4.83 mm | 0.198 " | 0.19 in | 10 % | Surface Mount |
TT Electronics/BI | J Lead | 5 kOhms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 4.83 mm | 4.57 mm | 0.19 " | 0.18 in | 10 % | Surface Mount |
TT Electronics/BI | J Lead | 10000 Ohms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 4.83 mm | 4.57 mm | 0.19 " | 0.18 in | 10 % | Surface Mount |
TT Electronics/BI | Gull Wing | 10000 Ohms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 5.03 mm | 4.83 mm | 0.198 " | 0.19 in | 10 % | Surface Mount |
TT Electronics/BI | Gull Wing | 100 kOhms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 5.03 mm | 4.83 mm | 0.198 " | 0.19 in | 10 % | Surface Mount |
TT Electronics/BI | Gull Wing | 200 Ohms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 5.03 mm | 4.83 mm | 0.198 " | 0.19 in | 10 % | Surface Mount |
TT Electronics/BI | Gull Wing | 100 kOhms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 5.03 mm | 4.83 mm | 0.198 " | 0.19 in | 10 % | Surface Mount |
TT Electronics/BI | J Lead | 1000 Ohms | 100 ppm/°C | Cermet | 9 | 0.25 W | 250 mW | Side Adjustment | 4.83 mm | 4.57 mm | 0.19 " | 0.18 in | 10 % | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.45 | |
| 10 | $ 5.00 | |||
| 25 | $ 4.45 | |||
| 50 | $ 4.18 | |||
| 100 | $ 3.82 | |||
| 250 | $ 3.09 | |||
| Digi-Reel® | 1 | $ 5.45 | ||
| 10 | $ 5.00 | |||
| 25 | $ 4.45 | |||
| 50 | $ 4.18 | |||
| 100 | $ 3.82 | |||
| 250 | $ 3.09 | |||
| Tape & Reel (TR) | 500 | $ 2.64 | ||
| 1000 | $ 2.46 | |||
| 1500 | $ 2.37 | |||
| 2500 | $ 2.25 | |||
| 3500 | $ 2.25 | |||
Description
General part information
44JR Series
10 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 9.0 Turn Side Adjustment
