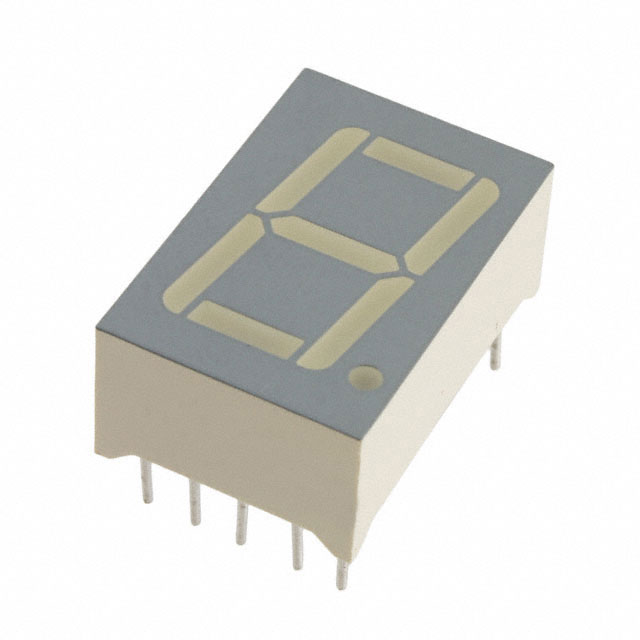

SC56-11GWA

Active

Kingbright

DISPLAY SEGMENTED MODULE 1DIGIT 8LED GREEN CC 10-PIN DIP MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC56-11GWA

Active

Kingbright

DISPLAY SEGMENTED MODULE 1DIGIT 8LED GREEN CC 10-PIN DIP MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC56-11GWA

Color	Green
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	0.75 in
Size / Dimension [x]	19.05 mm
Size / Dimension [y]	12.7 mm
Size / Dimension [y]	0.5 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.315 "
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

SC56-11 Series

Part	Current - Test	Display Type	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Color	Number of Characters [custom]	Millicandela Rating	Common Pin
Kingbright SC56-11SYKWA	20 mA	7-Segment	0.6 in	15.24 mm	10-DIP	0.56 in	14.22 mm	590 nm	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	2 V	75 mw	Yellow	1	160 mcd	Common Cathode
Kingbright SC56-11GWA	20 mA	7-Segment	0.6 in	15.24 mm	10-DIP	0.56 in	14.22 mm	565 nm	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	2.2 V	62.5 mW	Green	1	11 mcd	Common Cathode
Kingbright SC56-11YWA	20 mA	7-Segment	0.6 in	15.24 mm	10-DIP	0.56 in	14.22 mm	590 nm	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	2.1 V	75 mw	Yellow	1	6.5 mcd	Common Cathode
Kingbright SC56-11EWA	20 mA	7-Segment	0.6 in	15.24 mm	10-DIP	0.56 in	14.22 mm	627 nm	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	2 V	75 mw	Red	1		Common Cathode
Kingbright SC56-11CGKWA	20 mA	7-Segment	0.6 in	15.24 mm	10-DIP	0.56 in	14.22 mm		12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	2.1 V	75 mw	Green	1	35 mcd	Common Cathode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.10
		40	$ 1.40
		120	$ 1.08
		520	$ 0.97
		1000	$ 0.84
		2000	$ 0.79
		5000	$ 0.77
		10000	$ 0.76

Description

General part information

SC56-11 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.2V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
