BVA01/Z0000/02
ActiveBULGIN LIMITED

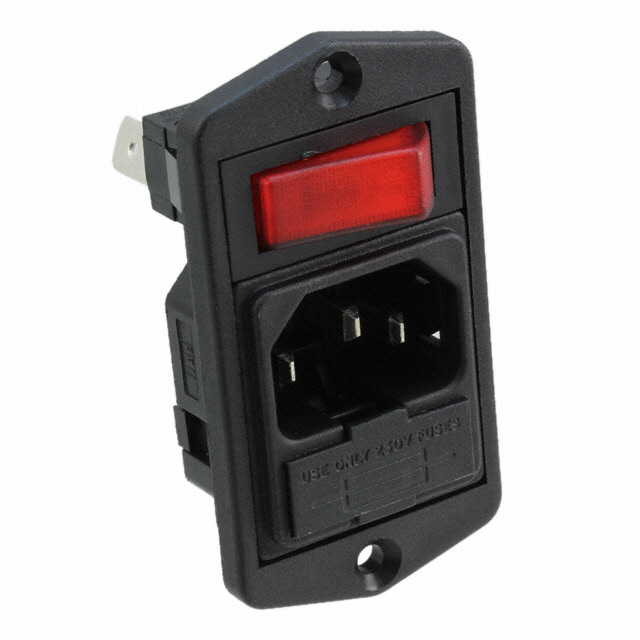

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 1-POLE SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BVA01/Z0000/02 |
|---|---|
| Accomodates a Fuse | True |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 33 mm |
| Panel Cutout Dimensions [y] | 53.2 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BVA01/Z Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
