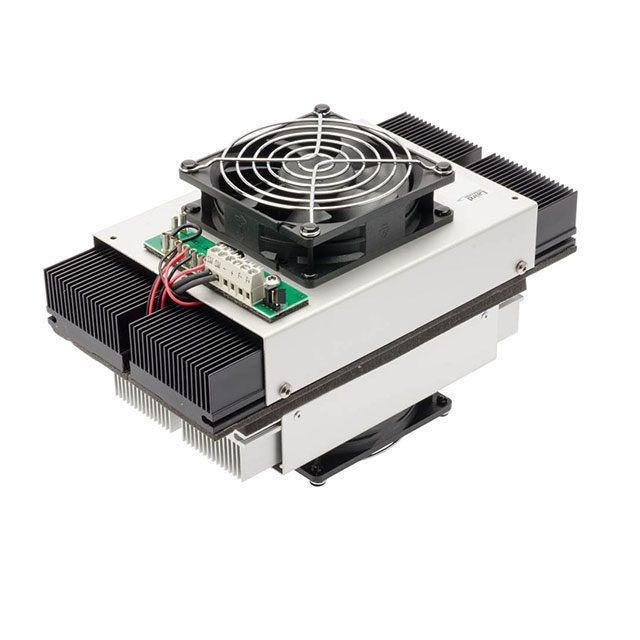

AA-060-24-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 58W
Deep-Dive with AI
Search across all available documentation for this part.
AA-060-24-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 58W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AA-060-24-22-00-00 |
|---|---|
| Current | 3.1 A |
| Dimensions - Overall [x] | 230 mm |
| Dimensions - Overall [y] | 122 mm |
| Dimensions - Overall [z] | 146.9 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] [custom] | 51 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Power - Cooling | 58 W |
| Power - Input | 74 W |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 452.72 | |
| 5 | $ 424.43 | |||
| 10 | $ 413.11 | |||
| 25 | $ 353.69 | |||
Description
General part information
AA-060-24 Series
Air to Air Thermoelectric Assembly 58 W
Documents
Technical documentation and resources
