46_SMA-50-0-1/111_NE
ActiveHuber+Suhner, Inc.

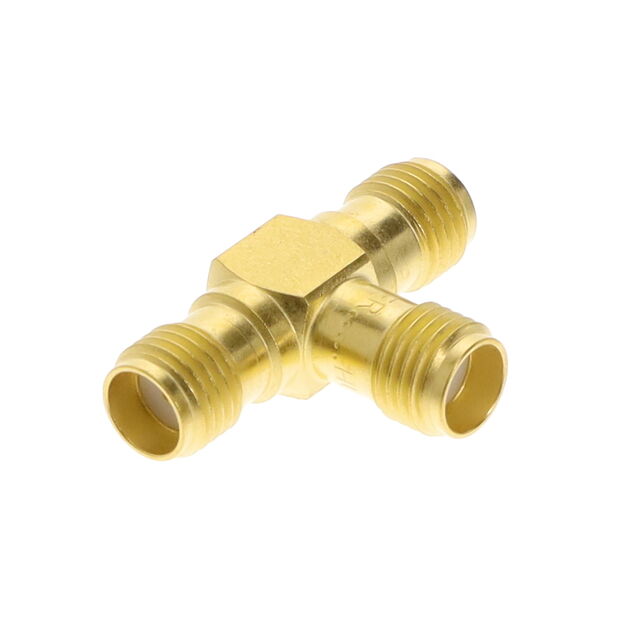

RF CONNECTOR ADAPTER, SMA-SMA, FEMALE-FEMALE-FEMALE, PLUG-PLUG, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
46_SMA-50-0-1/111_NE
ActiveHuber+Suhner, Inc.
RF CONNECTOR ADAPTER, SMA-SMA, FEMALE-FEMALE-FEMALE, PLUG-PLUG, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 46_SMA-50-0-1/111_NE |
|---|---|
| Adapter Series | SMA to SMA, Dual |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | SMA Jack, Female Socket (2) |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | T-Shape |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.15 | |
| 10 | $ 102.92 | |||
| 25 | $ 98.96 | |||
| 50 | $ 95.66 | |||
| 100 | $ 90.38 | |||
Description
General part information
46_SMA-50 Series
Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket (2) 50 Ohms
