8020.0607.H.PT

Active

SCHURTER Inc.

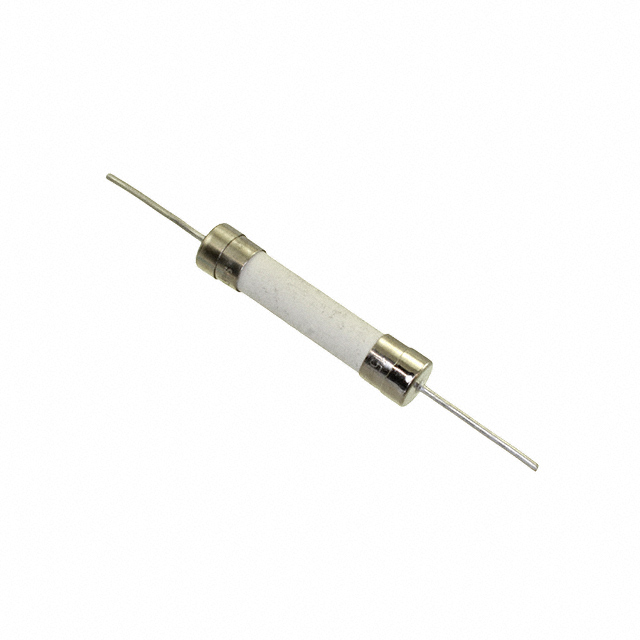

FUSE CERM 30A 250VAC 100VDC 3AB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8020.0607.H.PT

Active

SCHURTER Inc.

FUSE CERM 30A 250VAC 100VDC 3AB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8020.0607.H.PT

Approval Agency	UL, CSA, CE, cURus
Breaking Capacity @ Rated Voltage	500 A
Current Rating (Amps)	30 A
Fuse Type	Cartridge, Ceramic
Melting I²t	2475
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3AG, 3AB
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Slow Blow
Size / Dimension [diameter]	0.27 in
Size / Dimension [diameter]	6.85 mm
Size / Dimension [x]	1.291 "
Size / Dimension [x]	32.8 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	100 V

SUT-H-6332 Series

Part	Breaking Capacity @ Rated Voltage	Approval Agency	Melting I²t	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Fuse Type	Response Time	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mounting Type	Melting I˛t	Size / Dimension [x]	Size / Dimension [x]
SCHURTER Inc. 8020.0604.H	500 A	CE CSA cURus UL	1058	15 A	1.252 in	31.8 mm	6.35 mm	0.25 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Requires Holder
SCHURTER Inc. 8020.0606.H	500 A	CE CSA cURus UL		25 A	1.252 in	31.8 mm	6.35 mm	0.25 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Requires Holder	5275
SCHURTER Inc. 8020.0607.H	500 A	CE CSA cURus UL		30 A	1.252 in	31.8 mm	6.35 mm	0.25 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Requires Holder	2475
SCHURTER Inc. 8020.0602.H.PT	500 A	CE CSA cURus UL		10 A			6.85 mm	0.27 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Through Hole		1.291 "	32.8 mm
SCHURTER Inc. 8020.0607.H.PT	500 A	CE CSA cURus UL	2475	30 A			6.85 mm	0.27 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Through Hole		1.291 "	32.8 mm
SCHURTER Inc. 8020.0605.H	500 A	CE CSA cURus UL	3540	20 A	1.252 in	31.8 mm	6.35 mm	0.25 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Requires Holder
SCHURTER Inc. 8020.0603.H	500 A	CE CSA cURus UL		12 A	1.252 in	31.8 mm	6.35 mm	0.25 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Requires Holder	788
SCHURTER Inc. 8020.0609.H.PT	500 A	CE CSA cURus UL		50 A			6.85 mm	0.27 in	70 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Through Hole	9908	1.291 "	32.8 mm
SCHURTER Inc. 8020.0605.H.PT	500 A	CE CSA cURus UL		20 A			6.85 mm	0.27 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Through Hole	3540	1.291 "	32.8 mm
SCHURTER Inc. 8020.0604.H.PT	500 A	CE CSA cURus UL		15 A			6.85 mm	0.27 in	100 V	Cartridge Ceramic	Slow Blow	3AB 3AG	1-1/4	1/4	85 °C	-40 °C	250 V	Through Hole	1058	1.291 "	32.8 mm
