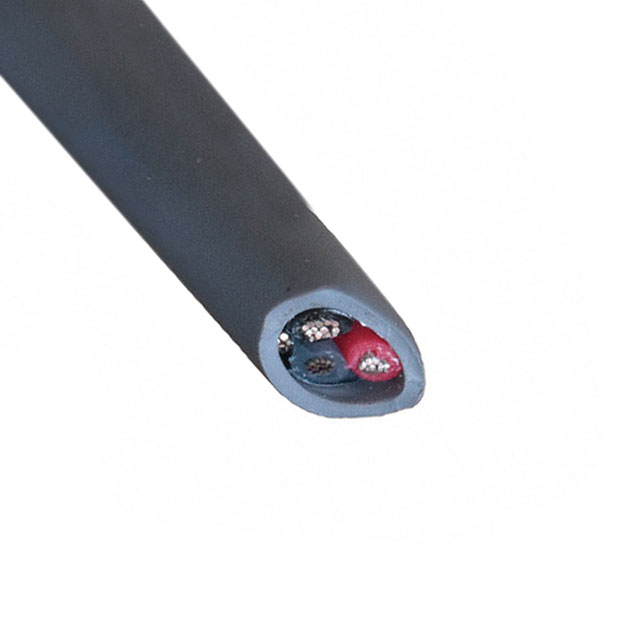

M13243 SL199

Active

ALPHA WIRE

CABLE 3COND 18AWG SHLD 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 18AWG SHLD 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M13243 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.253 in
Jacket (Insulation) Diameter [diameter]	6.43 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	3
Ratings	UL Style 2093
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Ratings	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Number of Conductors	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Features	Shield Material	Conductor Insulation	Wire Gauge
ALPHA WIRE M13243 SL199	914.4 m	3000 ft	Foil	0.838 mm	0.033 in	300 V	Multi-Conductor	UL Style 2093	Copper Tinned	0.253 in	6.43 mm	Poly-Vinyl Chloride (PVC)	3	100 %	16	30 AWG	Slate	Drain Wire	Aluminum	Polyethylene (PE)	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.84

General part information

3 Conductor Multi-Conductor Cable Slate 18 AWG Foil 3000' (914.4m)
