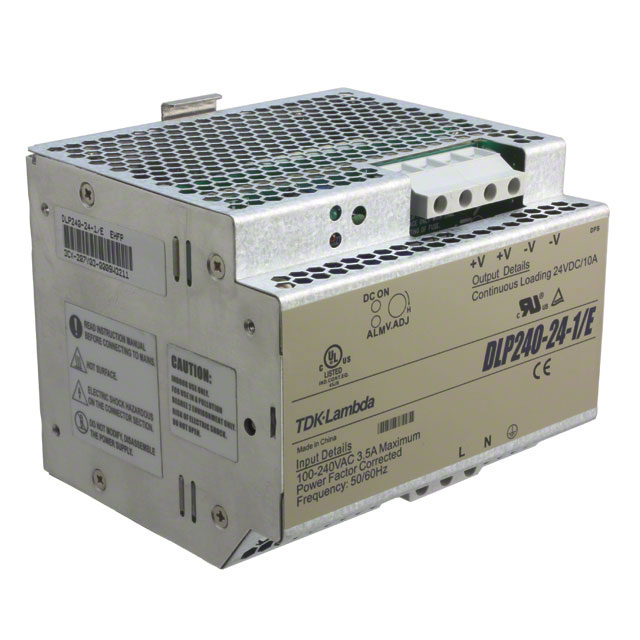

DLP240-24-1/E

Obsolete

TDK-LAMBDA

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Obsolete

TDK-LAMBDA

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	DLP240-24-1/E

AC Voltage - Input [Max]	265 VAC, 132 VAC
AC Voltage - Input [Min]	85 VAC, 170 VAC
Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	10 A
Efficiency	86 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	240 W
Size / Dimension [x]	4.33 in
Size / Dimension [x]	110 mm
Size / Dimension [y]	120 mm
Size / Dimension [y]	4.72 in
Size / Dimension [z]	3.82 in
Size / Dimension [z]	97 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Voltage - Output 1
TDK-LAMBDA DLP240-24-1/E	86 %	10 A	240 W	ITE (Commercial)	85 VAC 170 VAC	132 VAC 265 VAC	CE	-10 °C	60 °C	AC	Adjustable Output Universal Input	120 mm	4.72 in	3.82 in	97 mm	4.33 in	110 mm	3000 V	1	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
