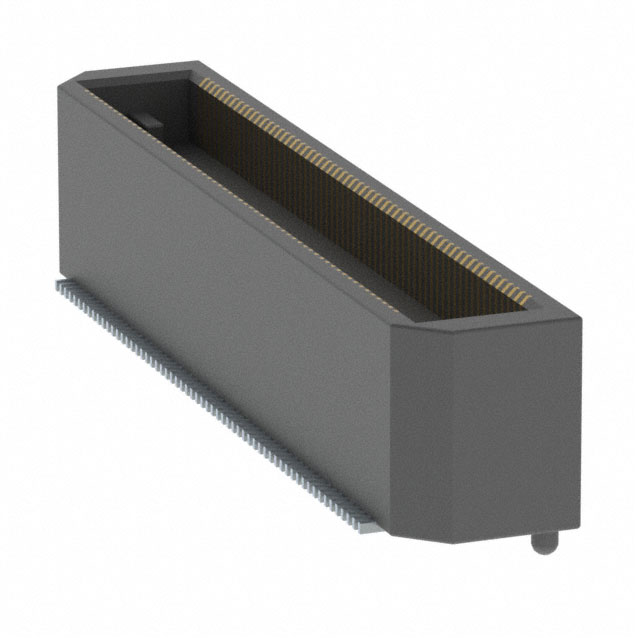

BTH-060-02-F-D-A-K-TR - BTH-060-02-x-D-A

BTH-060-02-F-D-A-K-TR

Active
Samtec Inc.

CONN HDR 120POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBTH,BSH Series Datasheet
BTH-060-02-F-D-A-K-TR - BTH-060-02-x-D-A

BTH-060-02-F-D-A-K-TR

Active
Samtec Inc.

CONN HDR 120POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheetBTH,BSH Series Datasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationBTH-060-02-F-D-A-K-TR
Connector TypeHeader, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness3 Áin
Contact Finish Thickness0.076 Ám
FeaturesBoard Guide
Height Above Board7.26 mm
Height Above Board0.286 "
Mated Stacking Heights8 mm
Mounting TypeSurface Mount
Number of Positions120
Number of Rows2
Pitch [x]0.5 mm
Pitch [x]0.02 in

BTH-060 Series

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Terminal Strip

PartPitch [x]Pitch [x]Number of RowsContact Finish ThicknessContact Finish ThicknessNumber of PositionsConnector TypeContact FinishMounting TypeHeight Above BoardHeight Above BoardMated Stacking HeightsFeaturesHeight Above Board [z]Height Above Board [z]
Samtec Inc.
BTH-060-01-F-D-EM2
0.5 mm
0.02 in
2
3 Áin
0.076 Ám
120
Header
Outer Shroud Contacts
Gold
Board Edge
Straddle Mount
Samtec Inc.
BTH-060-03-L-D-A
0.5 mm
0.02 in
2
10 Áin
0.25 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
10.27 mm
0.404 in
11 mm
Board Guide
Samtec Inc.
BTH-060-01-C-D-A-K
0.5 mm
0.02 in
2
50 µin
1.27 µm
120
Header
Outer Shroud Contacts
Gold
Surface Mount
5 mm
Board Guide
Samtec Inc.
BTH-060-05-F-D-A
0.5 mm
0.02 in
2
3 Áin
0.076 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
18.24 mm
0.718 in
19 mm
Board Guide
Samtec Inc.
BTH-060-06-L-D-A
0.5 mm
0.02 in
2
10 Áin
0.25 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
22 mm
Board Guide
21.23 mm
0.836 "
Samtec Inc.
BTH-060-01-F-D-A-TR
0.5 mm
0.02 in
2
3 Áin
0.076 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
5 mm
Board Guide
Samtec Inc.
BTH-060-06-H-D-LC
0.5 mm
0.02 in
2
30 Áin
0.76 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
22 mm
21.23 mm
0.836 "
Samtec Inc.
BTH-060-01-L-D-A-K-TR
0.5 mm
0.02 in
2
10 Áin
0.25 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
5 mm
Board Guide
Samtec Inc.
BTH-060-05-L-D
0.5 mm
0.02 in
2
10 Áin
0.25 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
18.24 mm
0.718 in
19 mm
Samtec Inc.
BTH-060-02-F-D-A-K-TR
0.5 mm
0.02 in
2
3 Áin
0.076 Ám
120
Header
Outer Shroud Contacts
Gold
Surface Mount
7.26 mm
0.286 "
8 mm
Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTape & Reel (TR) 275$ 5.59

Description

General part information

BTH-060 Series

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Terminal Strip

Documents

Technical documentation and resources

Datasheet

Datasheet

BTH,BSH Series Datasheet

Datasheet
