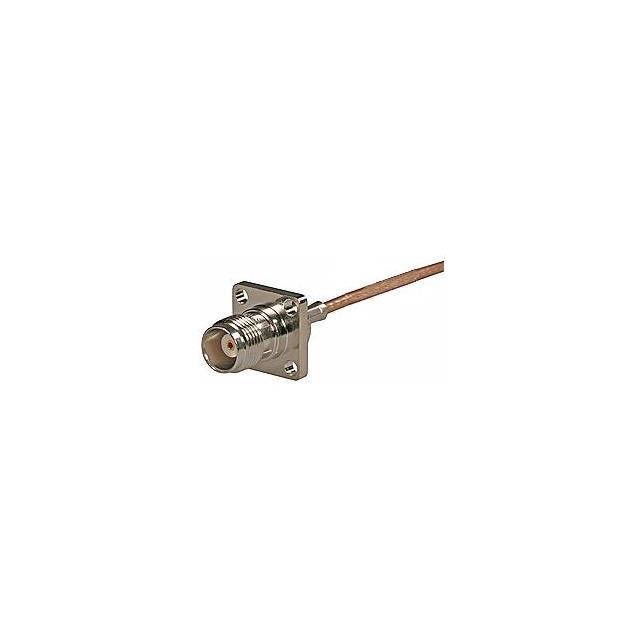

25_TNC-50-2-19/133_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

25_TNC-50-2-19/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	25_TNC-50-2-19/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Cable Group	Number of Ports	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Center Contact Plating	Impedance	Body Finish	Frequency - Max [Max]	Connector Type	Center Contact Material	Connector Style	Dielectric Material	Contact Termination	Mounting Feature	Mating Cycles	Body Material	Housing Color
Huber+Suhner, Inc. 25_TNC-50-3-9/133_NE	223 400 RG-142	1	Clamp	-65 ░C	165 °C	500 V	Gold	50 Ohms	White Bronze	11 GHz	Female Socket Jack	Beryllium Copper	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	Flange	500	Brass	Silver
Huber+Suhner, Inc. 25_TNC-50-2-19/133_NE	188 316 RG-174	1	Crimp	-65 ░C	165 °C	500 V	Gold	50 Ohms	White Bronze	11 GHz	Female Socket Jack	Beryllium Copper Brass	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	Flange	500	Brass	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
