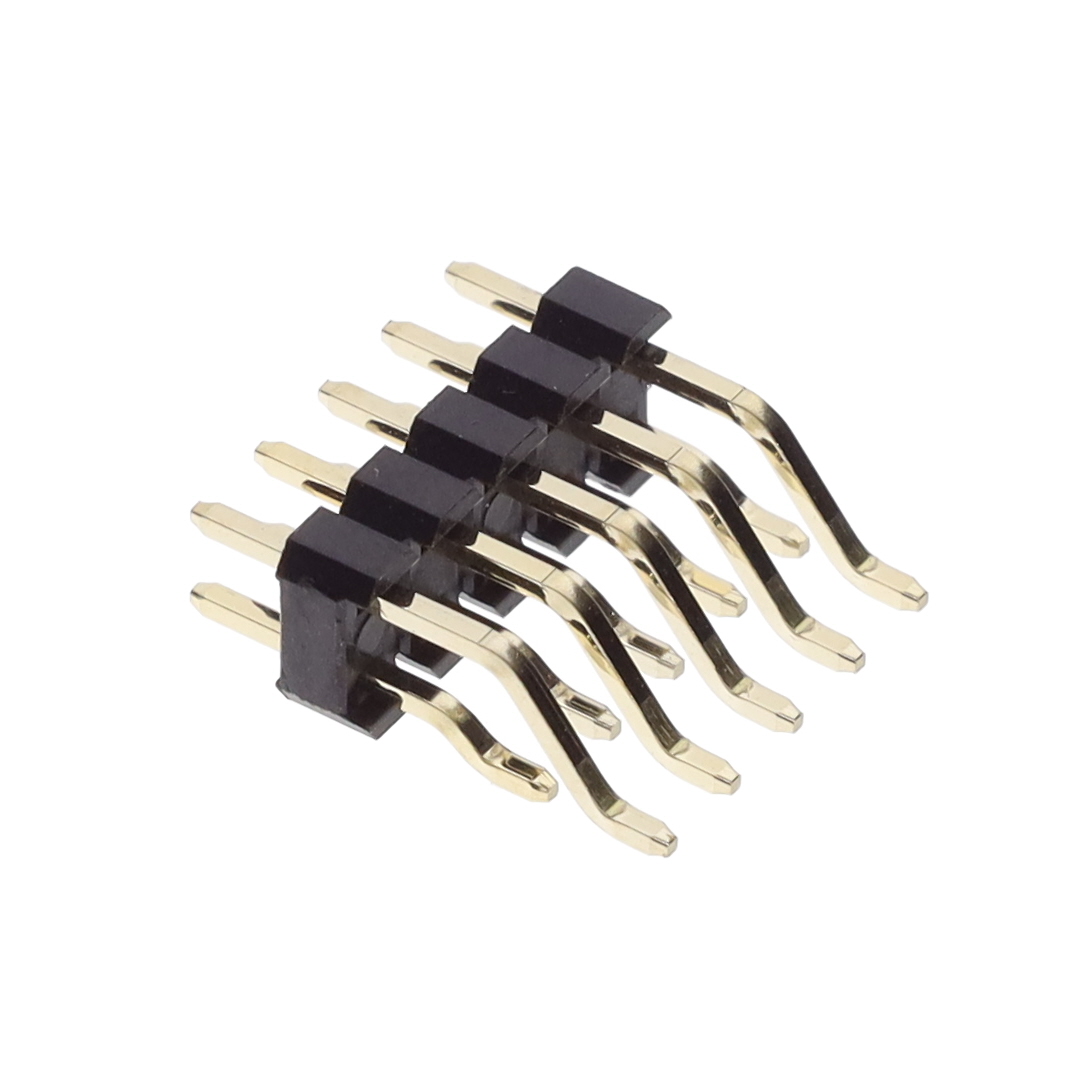

PM20205HBDN

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, DUAL ROW, .100"

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, DUAL ROW, .100"

Technical Specifications

Parameters and characteristics for this part

Specification	PM20205HBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Rows	Mounting Type	Insulation Material	Insulation Height [z]	Insulation Height [z]	Termination	Number of Positions	Connector Type	Contact Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Material	Contact Finish - Mating
METZ CONNECT USA Inc. PM20205HBDN	Flash	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Unshrouded	Square	-40 °C	105 ░C	Black	2	Surface Mount Right Angle	Polyethylene	0.098 in	2.5 mm	Solder	10	Header	Male Pin	3 mm	0.118 in	Push-Pull	Copper Zinc	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 10 position 0.100" (2.54mm)
