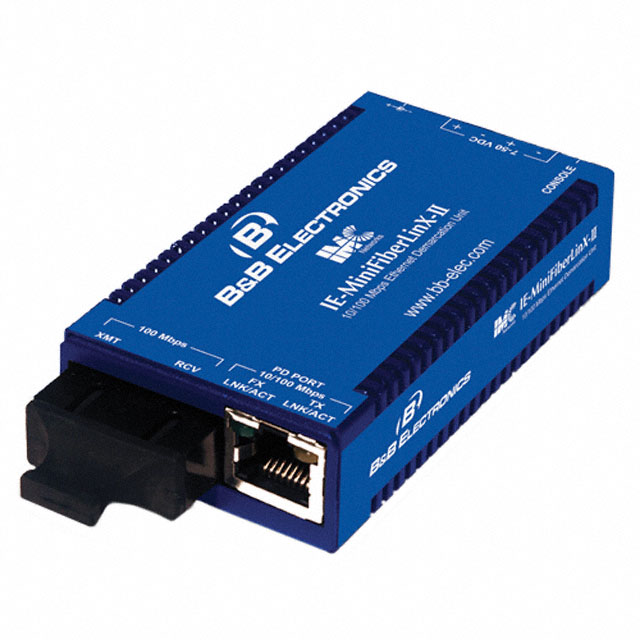

BB-856-19754
NRNDAdvantech Corp
IE-MINIFIBERLINX-II, TP-TX/SSFX-
Deep-Dive with AI
Search across all available documentation for this part.
BB-856-19754
NRNDAdvantech Corp
IE-MINIFIBERLINX-II, TP-TX/SSFX-
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-856-19754 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, SC |
| Copper Ports | 1 |
| Copper Type | 10/100 |
| Distance | 40 km |
| Features | SNMP Manageable |
| Fiber Ports | 1 |
| Fiber Type | 100BASE-FX (Singlemode) |
| Mounting Type | Chassis Mount |
| MTU | 1916 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Type | Managed |
| Voltage - Input [Max] | 48 V |
| Voltage - Input [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 581.76 | |
Description
General part information
BB-856 Series
IE-MINIFIBERLINX-II, TP-TX/SSFX-
Documents
Technical documentation and resources
No documents available
