3811-40006

Active

Amphenol SV Microwave

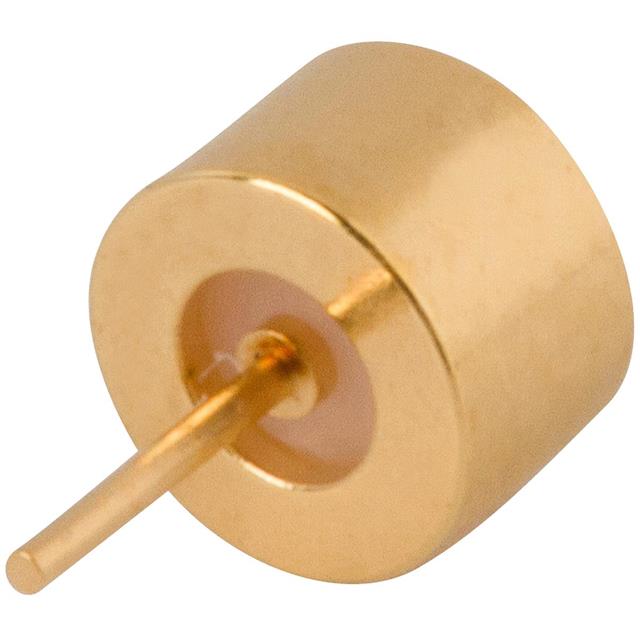

CONN SMPS PLUG STR 50 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3811-40006

Active

Amphenol SV Microwave

CONN SMPS PLUG STR 50 OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3811-40006

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPS
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount, Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

3811-40 Series

Part	Number of Ports	Impedance	Connector Style	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Body Material	Fastening Type	Mounting Type	Dielectric Material	Shield Termination	Connector Type	Body Finish	Frequency - Max [Max]	Center Contact Plating	Features	Center Contact Material	Mating Cycles
Amphenol SV Microwave 3811-40078	1	50 Ohms	SMPS	Solder	-65 ░C	165 °C	Gold	Beryllium Copper	Snap-On	Surface Mount Right Angle	Polyamide-Imide (PAI)	Solder	Male Pin Plug	Gold	65 GHz	Gold	Full Detent	Beryllium Copper
Amphenol SV Microwave 3811-40022	1	50 Ohms	SMPS	Solder	-55 °C	125 °C	Gold	Beryllium Copper	Snap-On	Surface Mount	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	100 GHz	Gold	Full Detent	Beryllium Copper
Amphenol SV Microwave 3811-40006	1	50 Ohms	SMPS	Solder	-55 °C	125 °C	Gold	Beryllium Copper	Snap-On	Surface Mount Through Hole	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold		Gold	Full Detent	Beryllium Copper
Amphenol SV Microwave 3811-40023	1	50 Ohms	SMPS	Solder	-55 °C	125 °C	Gold	Beryllium Copper	Snap-On	Surface Mount	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	100 GHz	Gold	Smooth Bore	Beryllium Copper
Amphenol SV Microwave 3811-40022-TD	1	50 Ohms	SMPS	Solder	-55 °C	125 °C	Gold	Beryllium Copper	Snap-On	Surface Mount	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold		Gold	Full Detent	Beryllium Copper
Amphenol SV Microwave 3811-40023-TD	1	50 Ohms	SMPS	Solder	-55 °C	125 °C	Gold	Beryllium Copper	Snap-On	Surface Mount	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold		Gold	Smooth Bore	Beryllium Copper	500
Amphenol SV Microwave 3811-40004-TD	1	50 Ohms	SMPS	Solder			Gold	Beryllium Copper	Snap-On	Board Edge Cutout Surface Mount	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	65 GHz	Gold	Smooth Bore	Beryllium Copper	500
Amphenol SV Microwave 3811-40003-TD	1	50 Ohms	SMPS	Solder			Gold	Beryllium Copper	Snap-On	Board Edge Cutout Surface Mount	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	65 GHz	Gold	Full Detent	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.31
		10	$ 17.79
		250	$ 15.04

Description

General part information

3811-40 Series

SMPS Connector Plug, Male Pin 50 Ohms Surface Mount, Through Hole Solder
