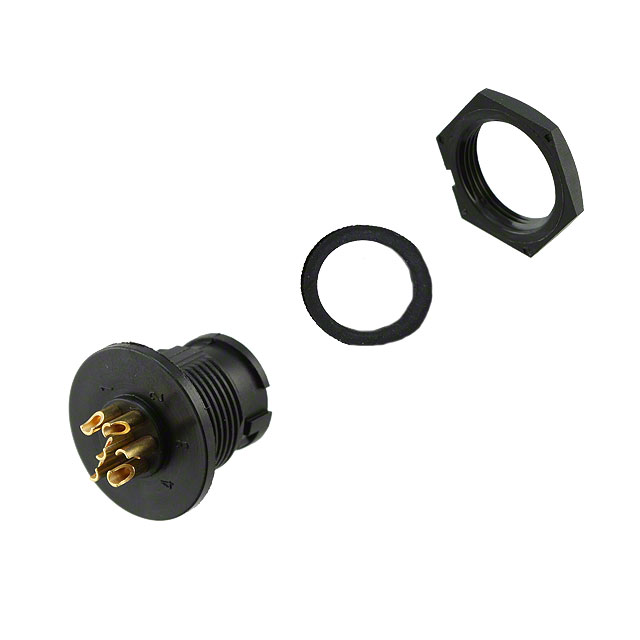

7282-6SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7282-6SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

Part	Backshell Material, Plating	Shielding	Connector Type	Orientation	Current Rating (Amps)	Fastening Type	Color	Applications	Mounting Feature	Primary Material	Contact Material	Voltage Rating	Number of Positions	Ingress Protection	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft 7282-6SG-300	Nylon Polyamide (PA)	Unshielded	Receptacle Female Sockets	Keyed	Varies by Wire Gauge	Bayonet Lock	Black	Automotive Communication Systems Instrumentation	Bulkhead - Front Side Nut	Plastic	Brass	600 V	6	Weathertight	Gold	-40 °C	115 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
