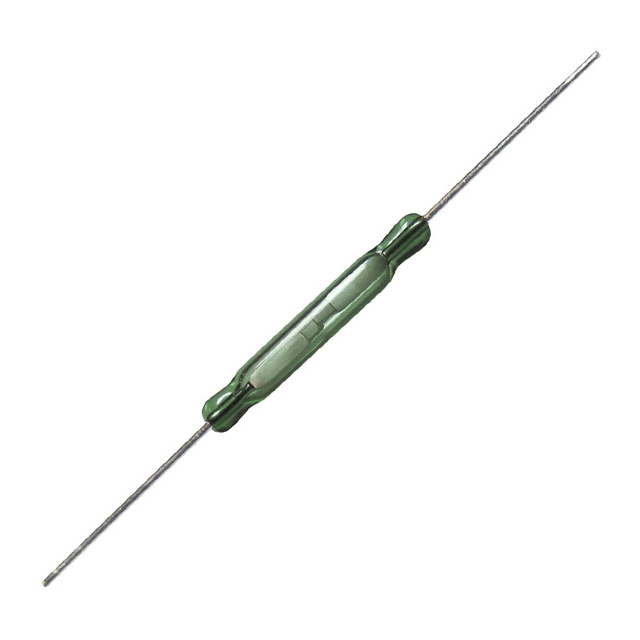

RI-27GP2025
ActiveComus International
SWITCH REED SPST-NO 500MA 140V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RI-27GP2025
ActiveComus International
SWITCH REED SPST-NO 500MA 140V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RI-27GP2025 |
|---|---|
| Capacitance | 0.25 pF |
| Circuit | SPST-NO |
| Current - Switching | 500 mA |
| Length - Overall [x] | 46 mm |
| Length - Overall [x] | 1.811 in |
| Mounting Type | Through Hole |
| Operate Range [Max] | 25 AT |
| Operate Range [Min] | 20 AT |
| Operate Time | 0.25 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Power - Rated | 10 W |
| Release Time | 0.03 ms |
| Size - Body [diameter] | 0.071 in |
| Size - Body [diameter] | 1.8 mm |
| Size - Body [z] | 13.5 mm |
| Size - Body [z] | 0.531 " |
| Termination Style | Axial |
| Type | Glass Body Reed |
| Voltage - Switching AC [custom] | 140 V |
| Voltage - Switching DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.43 | |
Description
General part information
RI-27GP Series
Glass Body Reed Switch SPST-NO 20 ~ 25AT Operate Range 10W 500mA (AC/DC) 140 V Through Hole
