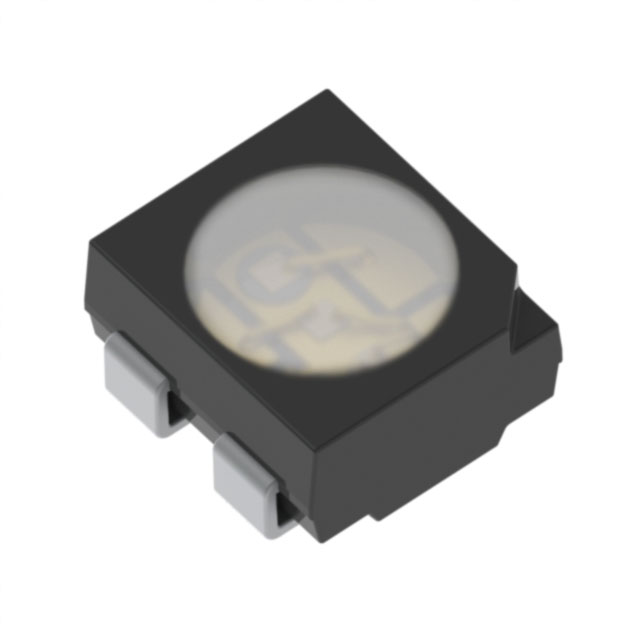

ASMB-LTC3-0D335
ActiveBroadcom Limited
LED RGB DIFFUSED 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMB-LTC3-0D335
ActiveBroadcom Limited
LED RGB DIFFUSED 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMB-LTC3-0D335 |
|---|---|
| Color | Red, Green, Blue |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 50 mcd |
| Millicandela Rating [custom] | 70 mcd |
| Millicandela Rating [custom] | 310 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension [x] | 2.1 mm |
| Size / Dimension [y] | 1.9 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.6 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.7 V |
| Wavelength - Dominant | 622 nm, 527 nm, 467 nm |
| Wavelength - Peak [custom] | 521 nm |
| Wavelength - Peak [custom] | 631 nm |
| Wavelength - Peak [custom] | 463 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.38 | |||
| 100 | $ 0.25 | |||
| 1000 | $ 0.20 | |||
| 2000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.38 | |||
| 100 | $ 0.25 | |||
| 1000 | $ 0.20 | |||
| 2000 | $ 0.18 | |||
| Tape & Reel (TR) | 4000 | $ 0.15 | ||
| 8000 | $ 0.15 | |||
Description
General part information
ASMB-LTC3 Series
Red, Green, Blue (RGB) 622nm Red, 527nm Green, 467nm Blue LED Indication - Discrete 2V Red, 2.6V Green, 2.7V Blue 4-SMD, J-Lead
