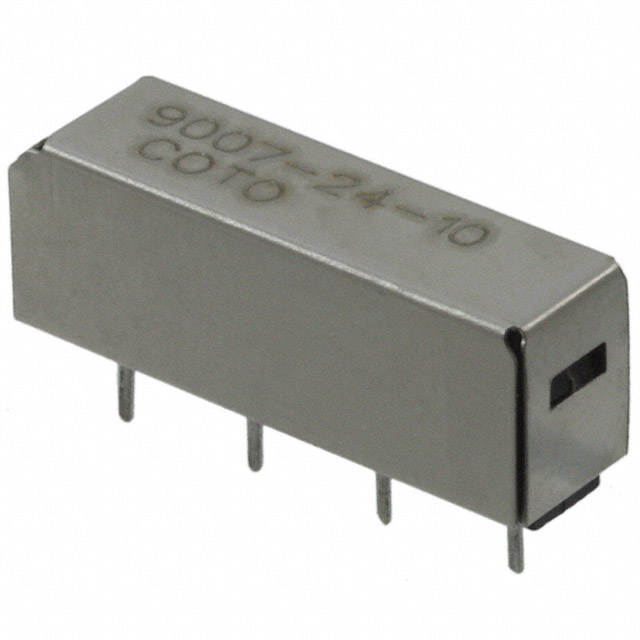

9007-24-10

Coto Technology

RELAY REED SPST 500MA 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9007-24-10

Coto Technology

RELAY REED SPST 500MA 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9007-24-10

Coil Current	12 mA
Coil Resistance	2 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	0.5 A
Features	EMI Shielded
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2 VDC
Operate Time	500 µs
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Release Time	0.2 ms
Switching Voltage	200 VDC, 200 VAC
Termination Style	PC Pin

9007 Series

Part	Release Time	Coil Resistance	Mounting Type	Termination Style	Switching Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Coil Current	Coil Voltage	Coil Type	Features	Contact Form	Operate Time	Must Release Voltage
Coto Technology 9007-24-10	0.2 ms	2 kOhms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	18 VDC	12 mA	24 VDC	Non Latching	EMI Shielded	SPST-NO (1 Form A)	500 µs	2 VDC
Coto Technology 9007-12-40	0.2 ms	2 kOhms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	9 VDC	6 mA	12 VDC	Non Latching	EMI Shielded	SPST-NO (1 Form A)	500 µs	1 VDC
Coto Technology 9007-05-00	0.2 ms	500 Ohms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	3.75 VDC	10 mA	5 VDC	Non Latching		SPST-NO (1 Form A)	500 µs	0.4 VDC
Coto Technology 9007-05-40	0.2 ms	1 kOhms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	3.75 VDC	5 mA	5 VDC	Non Latching	EMI Shielded	SPST-NO (1 Form A)	500 µs	0.4 VDC
Coto Technology 9007-24-01	0.2 ms	2 kOhms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	18 VDC	12 mA	24 VDC	Non Latching	Diode	SPST-NO (1 Form A)	500 µs	2 VDC
Coto Technology 9007-05-11	0.2 ms	500 Ohms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	3.75 VDC	10 mA	5 VDC	Non Latching	Diode EMI Shielded	SPST-NO (1 Form A)	500 µs	0.4 VDC
Coto Technology 9007-05-10	0.2 ms	500 Ohms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	3.75 VDC	10 mA	5 VDC	Non Latching	EMI Shielded	SPST-NO (1 Form A)	500 µs	0.4 VDC
Coto Technology 9007-12-01	0.2 ms	1 kOhms	Through Hole	PC Pin	200 VDC 200 VAC	0.5 A	85 °C	-20 C	9 VDC	12 mA	12 VDC	Non Latching	Diode	SPST-NO (1 Form A)	500 µs	1 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	924	$ 2.58

Description

General part information

9007 Series

RELAY REED SPST 500MA 24V
