SP2-P-DC5V

Active

Panasonic Electric Works

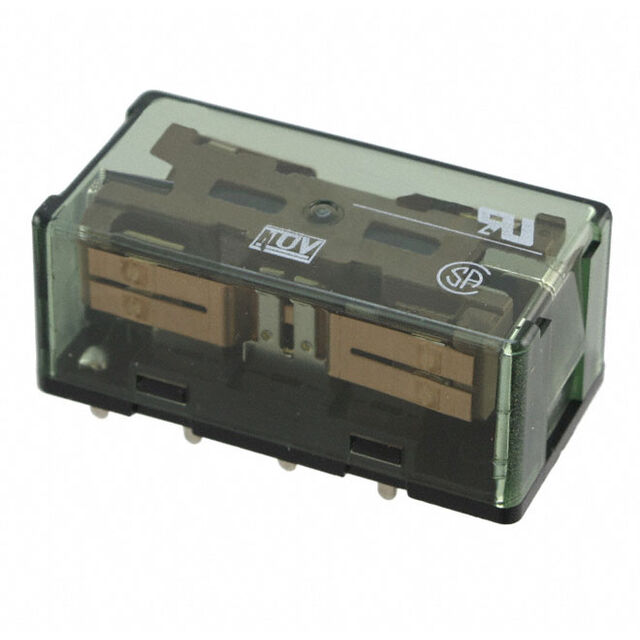

RELAY GEN PURPOSE DPDT 15A 5V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 15A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Relay Type	Operate Time	Load - Max Switching	Termination Style	Contact Rating (Current)	Must Release Voltage	Switching Voltage [Max]	Release Time	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Coil Resistance	Must Operate Voltage	Contact Material	Coil Current	Coil Type	Approval Agency
Panasonic Electric Works SP2-P-DC5V	5 VDC	General Purpose	30 ms	450 W 3750 VA	PC Pin	15 A	0.5 VDC	30 VDC 250 VAC	20 ms	Through Hole	60 °C	-50 °C	DPDT (2 Form C)	83 Ohms	3.5 VDC	Silver Tin Oxide (AgSnO)	60.2 mA	Non Latching	CSA UR VDE
Panasonic Electric Works SP2-P-DC3V		General Purpose	30 ms	450 W 3750 VA	PC Pin	15 A	0.3 VDC	30 VDC 250 VAC	20 ms	Through Hole	60 °C	-50 °C	DPDT (2 Form C)	30 Ohms	2.1 VDC	Gold (Au) Silver Tin Oxide (AgSnO)	100 mA	Non Latching	CSA UR VDE
Panasonic Electric Works SP2-P-DC24V	24 VDC	General Purpose	30 ms	450 W 3750 VA	PC Pin	15 A	2.4 VDC	30 VDC 250 VAC	20 ms	Through Hole	60 °C	-50 °C	DPDT (2 Form C)	1.92 kOhms	16.8 VDC	Silver Tin Oxide (AgSnO)		Non Latching	CSA UR VDE
