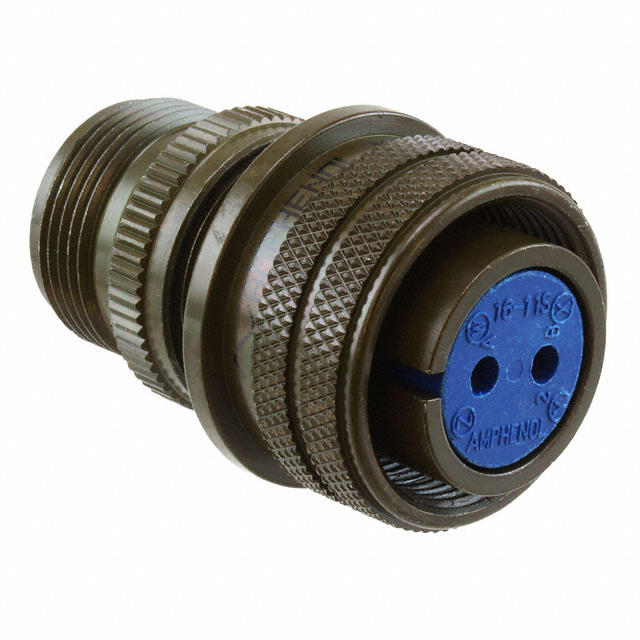

97-3106A-16-11S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3106A-16-11S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3106A-16-11S

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16-11
Shielding	Unshielded

97-3106A16 Series

Part	Shielding	Orientation	Connector Type	Features	Shell Material	Insert Material	Applications	Shell Finish	Number of Positions	Backshell Material, Plating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size - Insert	Contact Finish - Mating	Mounting Type	Color
Amphenol Industrial Operations 97-3106A16S-1S-639	Unshielded	N	Female Sockets Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Clear Cadmium	7	Aluminum Alloy Clear Cadmium	Metal	-55 °C	125 °C	Copper Alloy	16S-1	Silver	Free Hanging (In-Line)
Amphenol Industrial Operations 97-3106A16-10PX	Unshielded	X	Male Pins Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Olive Drab Chromate over Cadmium			Metal	-55 °C	125 °C	Copper Alloy	16-10	Silver	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations 97-3106A-16-10P	Unshielded	N	Male Pins Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Olive Drab Chromate over Cadmium			Metal	-55 °C	125 °C	Copper Alloy	16-10	Silver	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations 97-3106A-16S-8S	Unshielded	N	Female Sockets Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Olive Drab Chromate over Cadmium			Metal	-55 °C	125 °C	Copper Alloy	16S-8	Silver	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations 97-3106A-16-11S	Unshielded	N	Female Sockets Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Olive Drab Chromate over Cadmium	2		Metal	-55 °C	125 °C	Copper Alloy	16-11	Silver	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations 97-3106A16S-4SY	Unshielded	Y	Female Sockets Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Olive Drab Chromate over Cadmium	2		Metal	-55 °C	125 °C	Copper Alloy	16S-4	Silver	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations 97-3106A16S-4SX	Unshielded	X	Female Sockets Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Olive Drab Chromate over Cadmium	2		Metal	-55 °C	125 °C	Copper Alloy	16S-4	Silver	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations 97-3106A-16S-8P(946)	Unshielded	N	Male Pins Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Black Zinc Alloy		Aluminum Alloy Black Zinc Alloy	Metal	-55 °C	125 °C	Copper Alloy	16S-8	Silver	Free Hanging (In-Line)	Black
Amphenol Industrial Operations 97-3106A16-12P	Unshielded	N	Male Pins Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Olive Drab Chromate over Cadmium	1		Metal	-55 °C	125 °C	Copper Alloy	16-12	Silver	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations 97-3106A-16S-8S(946)	Unshielded	N	Female Sockets Plug	Backshell Coupling Nut	Aluminum Alloy	Diallyl Phthalate (DAP)	Automotive Industrial	Black Zinc Alloy		Aluminum Alloy Black Zinc Alloy	Metal	-55 °C	125 °C	Copper Alloy	16S-8	Silver	Free Hanging (In-Line)	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.73
		10	$ 39.17
		100	$ 35.06

Description

General part information

97-3106A16 Series

2 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources
