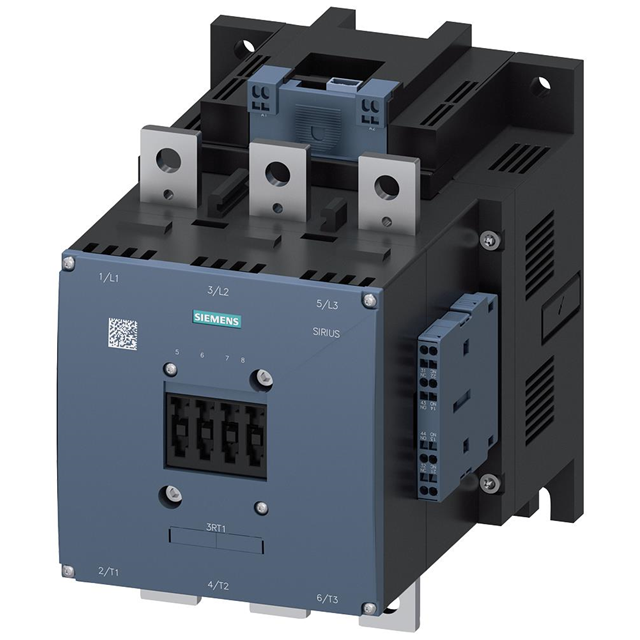

3RT10752XJ460LA2

Active

Siemens

CONTACTOR AC3:200 KW/400V 2NO+2N

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SIRIUS Contactor Selection Guide.pdy +2

3RT10752XJ460LA2

Active

Siemens

CONTACTOR AC3:200 KW/400V 2NO+2N

Deep-Dive with AI

DocumentsDatasheet SIRIUS Contactor Selection Guide.pdy +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT10752XJ460LA2

Coil Power	800 W
Coil Voltage	72 VDC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	400 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	50.4 VDC
Operate Time	90 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Release Time	100 ms
Switching Voltage	1000 VAC
Termination Style	Screw Terminal

3RT1075 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Release Time	Contact Form	Contact Rating (Current)	Termination Style	Coil Voltage [Max]	Coil Voltage [Min]	Operate Time	Features	Mounting Type	Coil Power	Must Operate Voltage	Coil Voltage
Siemens 3RT10756AF36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	127 VAC/DC	110 VAC/DC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	920 W
Siemens 3RT10752XJ460LA2	-40 °C	70 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal			90 ms	Auxiliary Contacts	Chassis Mount DIN Rail	800 W	50.4 VDC	72 VDC
Siemens 3RT10756NP36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	277 VAC	200 VAC/DC	90 ms	Auxiliary Contacts	Chassis Mount DIN Rail	800 W
Siemens 3RT10752NP36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	277 VAC	200 VAC/DC	90 ms	Auxiliary Contacts	Chassis Mount DIN Rail	800 W
Siemens 3RT10756AB36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	26 VAC/DC	23 VAC/DC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	920 W
Siemens 3RT10756SF363PA0	-25 °C	60 °C	1000 VAC	130 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	127 VAC/DC	96 VAC/DC	75 ms	Auxiliary Contacts	Chassis Mount DIN Rail	800 W
Siemens 3RT10756AR36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	480 VAC/DC	440 VAC/DC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	920 W
Siemens 3RT10756AM36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	220 VAC/DC	200 VAC/DC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	920 W
Siemens 3RT10756AP36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	240 VAC	220 VAC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	920 W
Siemens 3RT10756AD36	-25 °C	60 °C	1000 VAC	100 ms	3PST-NO (3 Form A)	400 A	Screw Terminal	48 VAC/DC	42 VAC/DC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	920 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3334.55
