19103119000

Active

Amphenol Socapex

CABLE CAT6A 8COND 26AWG BLK 100M

Search across all available documentation for this part.

Active

Amphenol Socapex

CABLE CAT6A 8COND 26AWG BLK 100M

Technical Specifications

Parameters and characteristics for this part

Specification	19103119000

Cable Type	Multi-Pair, Cat6a
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	100 m
Length	328.1 ft
Number of Conductors	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	80 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Communication
Wire Gauge	26 AWG

Part	Shield Type	Length	Length	Number of Conductors	Shield Coverage	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Cable Type	Conductor Material	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Jacket Color
Amphenol Socapex 19103119000	Braid Foil	100 m	328.1 ft	8	80 % 100 %	Aluminum Copper Tinned	85 °C	-40 °C	0.272 in	6.91 mm	Communication	Multi-Pair Cat6a	Copper Tinned	Polyethylene (PE)	26 AWG	Polyurethane (PU)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

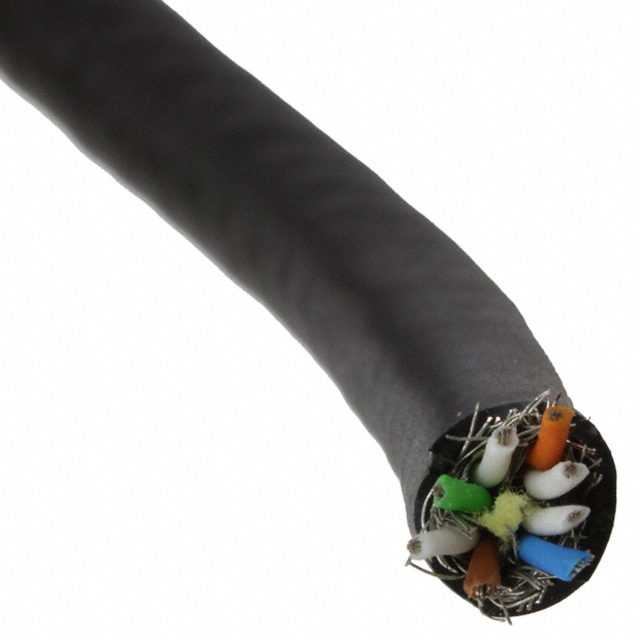

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6a Cable Black 26 AWG Foil, Braid 328.1' (100.0m)

Technical documentation and resources
