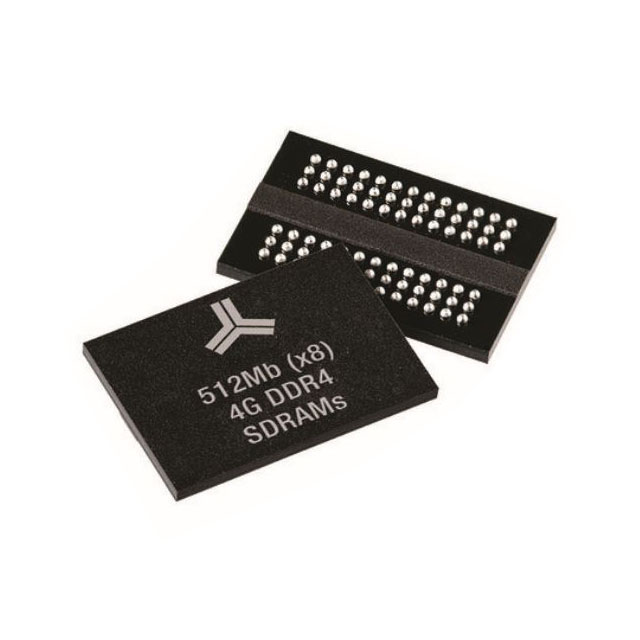

AS4C512M8D4-83BCN

Alliance Memory, Inc.

IC DRAM 4GBIT POD 78FBGA

Deep-Dive with AI

Search across all available documentation for this part.

AS4C512M8D4-83BCN

Alliance Memory, Inc.

IC DRAM 4GBIT POD 78FBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AS4C512M8D4-83BCN

Access Time	18 ns
Clock Frequency	1.2 GHz
Memory Format	DRAM
Memory Interface	POD
Memory Organization	512 M
Memory Size	512 kb
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	95 °C
Operating Temperature [Min]	0 °C
Supplier Device Package	78-FBGA
Supplier Device Package [x]	7.5
Supplier Device Package [y]	10.6
Technology	SDRAM - DDR4
Write Cycle Time - Word, Page	15 ns

AS4C512 Series

Part	Technology	Memory Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Memory Format	Access Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Write Cycle Time - Word, Page	Memory Organization	Mounting Type	Package / Case	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Memory Interface
Alliance Memory, Inc. AS4C512M16D3LB-12BINTR	SDRAM - DDR3L	Volatile	96-FBGA	13.5	9	DRAM	20 ns	1.45 V	1.283 V	15 ns	512 M	Surface Mount	96-TFBGA	800 MHz	95 °C	-40 °C	1024 KB	Parallel
Alliance Memory, Inc. AS4C512M16D3LA-10BAN	SDRAM - DDR3L	Volatile	96-FBGA	13.5	9	DRAM	20 ns	1.425 V	1.275 V	15 ns	512 M	Surface Mount	96-TFBGA	933 MHz	105 °C	-40 °C	1024 KB	Parallel
Alliance Memory, Inc. AS4C512M8D4-75BINTR	SDRAM - DDR4	Volatile	78-FBGA	7.5	10.6	DRAM	18 ns			15 ns	512 M	Surface Mount		1.333 GHz	95 °C	-40 °C	512 kb	POD
Alliance Memory, Inc. AS4C512M16D3LC-10BINTR	SDRAM - DDR3L	Volatile	96-FBGA			DRAM	20 ns	1.45 V	1.283 V	15 ns	512 M	Surface Mount	96-TFBGA	933 MHz	95 °C	-40 °C	1024 KB	Parallel
Alliance Memory, Inc. AS4C512M32MD4V-046BIN	SDRAM - Mobile LPDDR4X	Volatile	200-FBGA (10x15)			DRAM		1.17 V 1.95 V	1.06 V 1.7 V	18 ns	512 M	Surface Mount	200-VFBGA	4.266 GHz	95 °C	-40 °C		LVSTLE_06
Alliance Memory, Inc. AS4C512M16D3LA-10BCNTR	SDRAM - DDR3L	Volatile	96-FBGA	13.5	9	DRAM	20 ns	1.45 V	1.283 V	15 ns	512 M	Surface Mount	96-TFBGA	933 MHz	95 °C	0 °C	1024 KB	Parallel
Alliance Memory, Inc. AS4C512M8D4A-75BIN	SDRAM - DDR4	Volatile	78-FBGA (7.5x11)			DRAM	18 ns			15 ns	512 M	Surface Mount		1.333 GHz	95 °C	-40 °C	512 kb	POD
Alliance Memory, Inc. AS4C512M8D4-83BCN	SDRAM - DDR4	Volatile	78-FBGA	7.5	10.6	DRAM	18 ns			15 ns	512 M	Surface Mount		1.2 GHz	95 °C	0 °C	512 kb	POD
Alliance Memory, Inc. AS4C512M32MD4V-053BIN	SDRAM - Mobile LPDDR4X	Volatile	200-FBGA (10x15)			DRAM		1.17 V 1.95 V	1.06 V 1.7 V	18 ns	512 M	Surface Mount	200-VFBGA	1866 MHz	85 °C	-40 °C		LVSTLE_06
Alliance Memory, Inc. AS4C512M8D4-75BCN	SDRAM - DDR4	Volatile	78-FBGA	7.5	10.6	DRAM	18 ns			15 ns	512 M	Surface Mount		1.333 GHz	95 °C	0 °C	512 kb	POD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.62
		10	$ 9.84
		25	$ 9.61
		40	$ 9.56
		80	$ 8.42
		242	$ 8.00
		484	$ 7.92
		968	$ 7.66

Description

General part information

AS4C512 Series

SDRAM - DDR4 Memory IC 4Gbit POD 1.2 GHz 18 ns 78-FBGA (7.5x10.6)

Documents

Technical documentation and resources

No documents available
