ED1110/5

Active

On Shore Technology Inc.

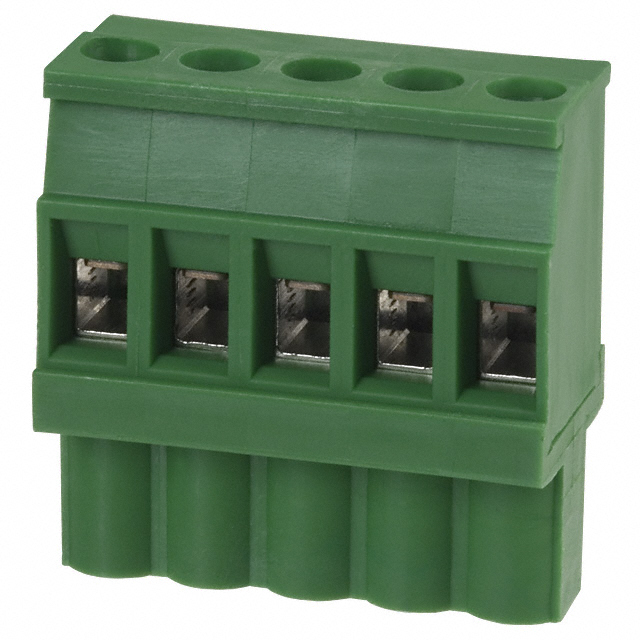

TERM BLOCK PLUG 5POS 270DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ED1110/5

Active

On Shore Technology Inc.

TERM BLOCK PLUG 5POS 270DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED1110/5

Color	Green
Contact Material	Copper Tin Alloy
Housing Material	Polyamide (PA), Nylon
Insulation Height [z]	1.043 in
Insulation Height [z]	26.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	270 °
Positions Per Level	5
Screw Size	M3
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	7 mm

ED1110 Series

Part	Termination Style	Screw Size	Number of Positions	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Material Flammability Rating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Plug Wire Entry	Color	Wire Strip Length	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm²	Contact Material	Type	Voltage - UL	Positions Per Level	Housing Material	Wire Gauge or Range - mm˛
On Shore Technology Inc. ED1110/10	Screw	M3	10	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm	2.5 mm²	Copper Tin Alloy	Plug Female Sockets	300 V	10	Polyamide (PA) Nylon
On Shore Technology Inc. ED1110/7	Screw	M3	7	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm		Copper Tin Alloy	Plug Female Sockets	300 V	7	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. ED1110/5	Screw	M3		5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm		Copper Tin Alloy	Plug Female Sockets	300 V	5	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. ED1110/12	Screw	M3	12	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm		Copper Tin Alloy	Plug Female Sockets	300 V	12	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. ED1110/8	Screw	M3	8	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm		Copper Tin Alloy	Plug Female Sockets	300 V	8	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. ED1110/2	Screw	M3	2	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm	2.5 mm²	Copper Tin Alloy	Plug Female Sockets	300 V	2	Polyamide (PA) Nylon
On Shore Technology Inc. ED1110/6	Screw	M3	6	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm	2.5 mm²	Copper Tin Alloy	Plug Female Sockets	300 V	6	Polyamide (PA) Nylon
On Shore Technology Inc. ED1110/9	Screw	M3	9	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm	2.5 mm²	Copper Tin Alloy	Plug Female Sockets	300 V	9	Polyamide (PA) Nylon
On Shore Technology Inc. ED1110/14	Screw	M3	14	5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm	2.5 mm²	Copper Tin Alloy	Plug Female Sockets	300 V	14	Polyamide (PA) Nylon
On Shore Technology Inc. ED1110/3	Screw	M3		5 mm	0.197 in	-30 ░C	105 ░C	1	UL94 V-0	Free Hanging (In-Line)	1.043 in	26.5 mm	22 AWG	10 AWG	270 °	Green	7 mm	4.4 Lb-In	0.5 Nm	2.5 mm²	Copper Tin Alloy	Plug Female Sockets	300 V	3	Polyamide (PA) Nylon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 3.79

Description

General part information

ED1110 Series

5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line)
