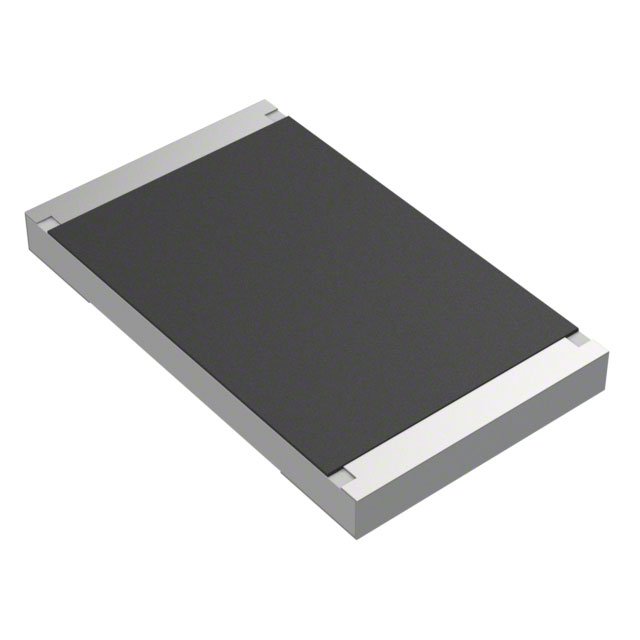

RES 3560 4M7 1%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35604M7FT

Active

TE Connectivity Passive Product

RES 3560 4M7 1%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35604M7FT

Composition	Thick Film
Features	Automotive AEC-Q200
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Power (Watts)	6 W
Ratings	AEC-Q200
Resistance	4.7 MOhms
Size / Dimension [x]	0.457 in
Size / Dimension [x]	11.6 mm
Size / Dimension [y]	0.27 in
Size / Dimension [y]	6.85 mm
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

3560 Series

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Features	Package / Case	Resistance	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Number of Terminations	Tolerance	Power (Watts)
TE Connectivity Passive Product 35604M7FT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	4.7 MOhms	Thick Film	155 °C	-55 °C	AEC-Q200	2	1 %	6 W
TE Connectivity Passive Product 35602K2FT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	2200 Ohms	Thick Film	155 °C	-55 °C	AEC-Q200	2	1 %	6 W
TE Connectivity Passive Product 3560120RFT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	120 Ohms	Thick Film	155 °C	-55 °C	AEC-Q200	2	1 %	6 W
TE Connectivity Passive Product 3560130KFT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	130 kOhms	Thick Film	155 °C	-55 °C	AEC-Q200	2	1 %	6 W
TE Connectivity Passive Product 35603M3JT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	3.3 MOhms	Thick Film	155 °C	-55 °C	AEC-Q200	2	5 %	6 W
TE Connectivity Passive Product 35601K1FT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	1100 Ohms	Thick Film	155 °C	-55 °C	AEC-Q200	2	1 %	6 W
TE Connectivity Passive Product 35601K2JT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	1.2 kOhms	Thick Film	155 °C	-55 °C	AEC-Q200	2	5 %	6 W
TE Connectivity Passive Product 3560680RJT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	680 Ohms	Thick Film	155 °C	-55 °C	AEC-Q200	2	5 %	6 W
TE Connectivity Passive Product 3560180RFT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	180 Ohms	Thick Film	155 °C	-55 °C	AEC-Q200	2	1 %	6 W
TE Connectivity Passive Product 3560150RFT	0.27 in	0.457 in	11.6 mm	6.85 mm	1.2 mm	0.047 in	100 ppm/°C	Automotive AEC-Q200	Nonstandard	150 Ohms	Thick Film	155 °C	-55 °C	AEC-Q200	2	1 %	6 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.64
		10	$ 2.32
		50	$ 1.79
		100	$ 1.62
		500	$ 1.34
	Digi-Reel®	1	$ 3.64
		10	$ 2.32
		50	$ 1.79
		100	$ 1.62
		500	$ 1.34
	Tape & Reel (TR)	1000	$ 1.06

Description

General part information

3560 Series

4.7 MOhms ±1% 6W Chip Resistor Nonstandard Automotive AEC-Q200 Thick Film
