A17877-12

Active

Laird Technologies - Thermal Materials

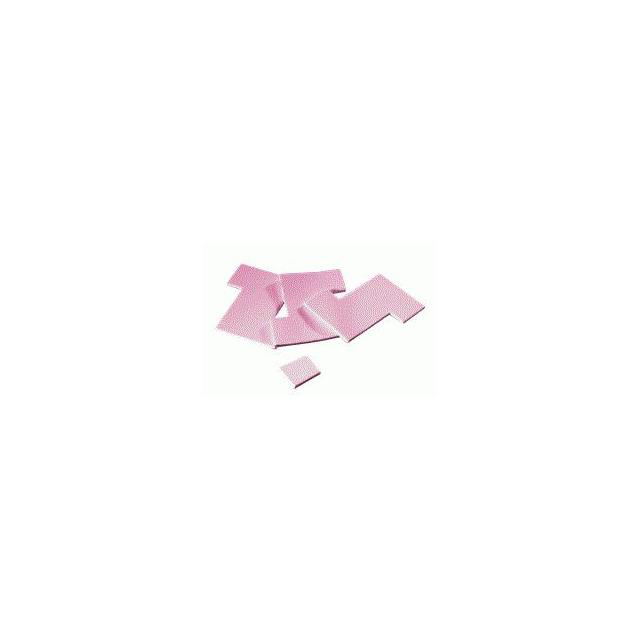

THERM PAD 228.6MMX228.6MM PINK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A17877-12

Active

Laird Technologies - Thermal Materials

THERM PAD 228.6MMX228.6MM PINK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A17877-12

Adhesive	Tacky - Both Sides
Color	Pink
Material	Silicone, Ceramic Filled
Outline [x]	228.6 mm
Outline [y]	228.6 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Thermal Conductivity	2.7 W/m-K
Thickness	0.12 in
Thickness	3.05 mm
Type	Gap Filler Pad, Sheet

A17877 Series

Part	Outline [x]	Outline [y]	Thermal Conductivity	Thickness	Thickness	Shelf Life	Type	Color	Adhesive	Material	Shelf Life Start	Shape	Thickness [z]	Thickness [z]
Laird Technologies - Thermal Materials A17877-20	228.6 mm	228.6 mm	2.7 W/m-K	0.2 in	200 mils	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-11	228.6 mm	228.6 mm	2.7 W/m-K			24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square	2.79 mm	0.11 in
Laird Technologies - Thermal Materials A17877-08	228.6 mm	228.6 mm	2.7 W/m-K	0.08 "	80 mils	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-05	228.6 mm	228.6 mm	2.7 W/m-K	0.05 in	50 mils	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-12	228.6 mm	228.6 mm	2.7 W/m-K	0.12 in	3.05 mm	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-04	228.6 mm	228.6 mm	2.7 W/m-K	0.04 in	1.016 mm	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-10	228.6 mm	228.6 mm	2.7 W/m-K	0.1 in	2.54 mm	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-16	228.6 mm	228.6 mm	2.7 W/m-K	0.16 in	4.06 mm	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-17	228.6 mm	228.6 mm	2.7 W/m-K	0.17 in	4.32 mm	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square
Laird Technologies - Thermal Materials A17877-02	228.6 mm	228.6 mm	2.7 W/m-K	0.02 in	0.508 mm	24 Months	Gap Filler Pad Sheet	Pink	Tacky - Both Sides	Ceramic Filled Silicone	Date of Shipment	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 115.28

Description

General part information

A17877 Series

Thermal Pad Pink 228.60mm x 228.60mm Square Tacky - Both Sides
