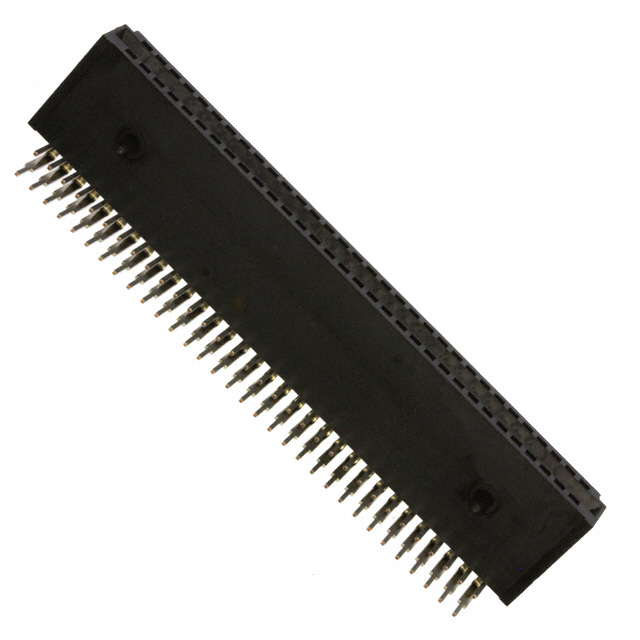

10053363-200LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 64POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
10053363-200LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 64POS 0.100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10053363-200LF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.10 | |
| 10 | $ 9.43 | |||
| 25 | $ 8.84 | |||
| 40 | $ 6.57 | |||
| 50 | $ 8.42 | |||
| 144 | $ 7.81 | |||
| 288 | $ 7.44 | |||
| 576 | $ 7.09 | |||
| 1008 | $ 6.81 | |||
Description
General part information
10053363 Series
64 (Power) Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
