H3KKH-6006G

Active

Assmann WSW Components

IDC CBL - HHPK60H/AE60G/HHPK60H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHPK60H/AE60G/HHPK60H

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Contact Finish	Connector Type	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Positions	Color	Length [x]	Length [x]
Assmann WSW Components H3KKH-6006G	Unshielded	Gold	Plug to Plug	152.4 mm	6 "	0.5 '	15 µin	0.38 µm	2	Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	60
Assmann WSW Components H3KKH-6036M	Unshielded	Gold	Plug to Plug				15 µin	0.38 µm	2	Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	60	Multiple Ribbon	3 ft	914.4 mm
Assmann WSW Components H3KKH-6018M	Unshielded	Gold	Plug to Plug				15 µin	0.38 µm	2	Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	60	Multiple Ribbon	1.5 ft	457.2 mm
Assmann WSW Components H3KKH-6018G	Unshielded	Gold	Plug to Plug				15 µin	0.38 µm	2	Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	60		1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

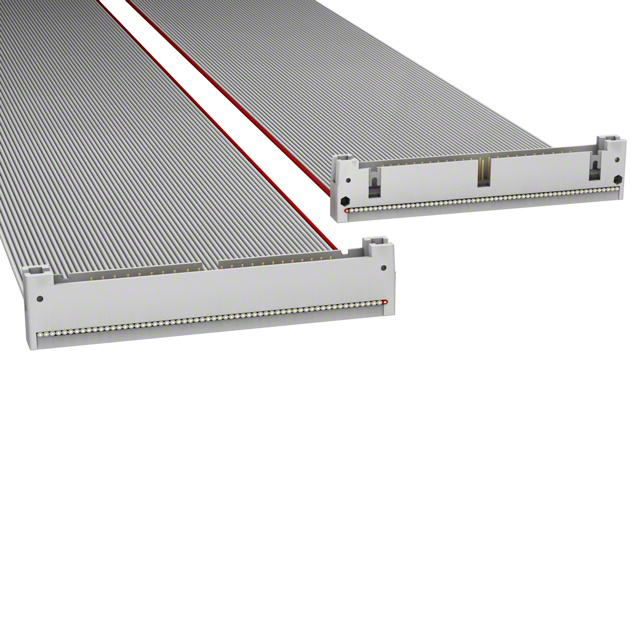

60 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
