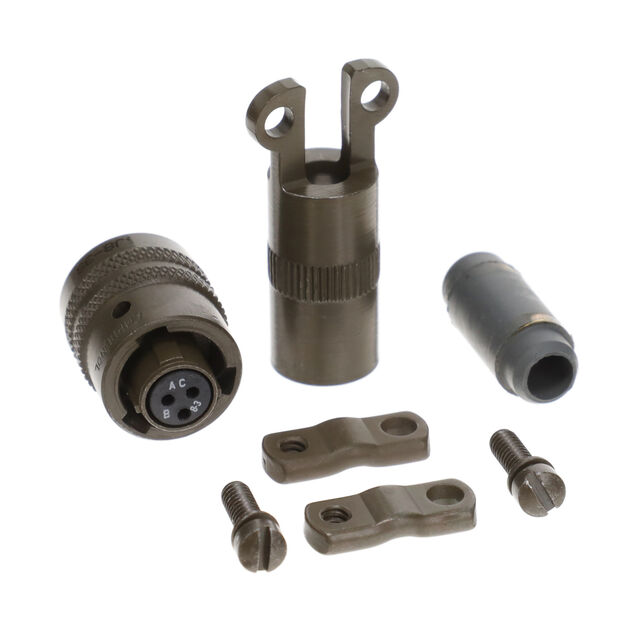

MS3116J8-3S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3116J8-3S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3116J8-3S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	8-3
Shielding	Unshielded
Voltage Rating	600 VAC

MS3116J8 Series

Part	Current Rating (Amps)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Connector Type	Contact Material	Color	Insert Material	Applications	Features	Qualification	Voltage Rating	Primary Material	Shell Material	Contact Finish - Mating	Fastening Type	Grade	Shielding	Orientation	Shell Finish	Mounting Type	Ingress Protection	Backshell Material, Plating
Amphenol Industrial Operations MS3116J8-4S	7.5 A	4	-55 °C	125 °C	8-4	Female Sockets Plug	Copper Alloy	Olive Drab	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Backshell Cable Clamp Strain Relief	MIL-DTL-26482 Series I	600 VAC	Metal	Aluminum Alloy	Gold	Bayonet Lock	Military	Unshielded	N	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Environment Resistant
Amphenol Industrial Operations MS3116J8-2PX		2	-55 °C	125 °C	8-2	Male Pins Plug	Copper Alloy	Olive Drab	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Backshell Cable Clamp Coupling Nut	MIL-DTL-26482 Series I		Metal	Aluminum	Gold	Bayonet Lock	Military	Unshielded	X	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)		Aluminum Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3116J8-3S	7.5 A		-55 °C	125 °C	8-3	Female Sockets Plug	Copper Alloy	Olive Drab	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Backshell Cable Clamp Strain Relief	MIL-DTL-26482 Series I	600 VAC	Metal	Aluminum Alloy	Gold	Bayonet Lock	Military	Unshielded	N	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Environment Resistant
Amphenol Industrial Operations MS3116J8-4SW		4	-55 °C	125 °C	8-4	Female Sockets Plug	Copper Alloy	Olive Drab	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Backshell Cable Clamp Coupling Nut	MIL-DTL-26482 Series I		Metal	Aluminum	Gold	Bayonet Lock	Military	Unshielded	W	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)		Aluminum Olive Drab Chromate over Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.09
		10	$ 82.67
		25	$ 79.49
		50	$ 76.84
		100	$ 72.60

Description

General part information

MS3116J8 Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
