1411190

Active

Phoenix Contact

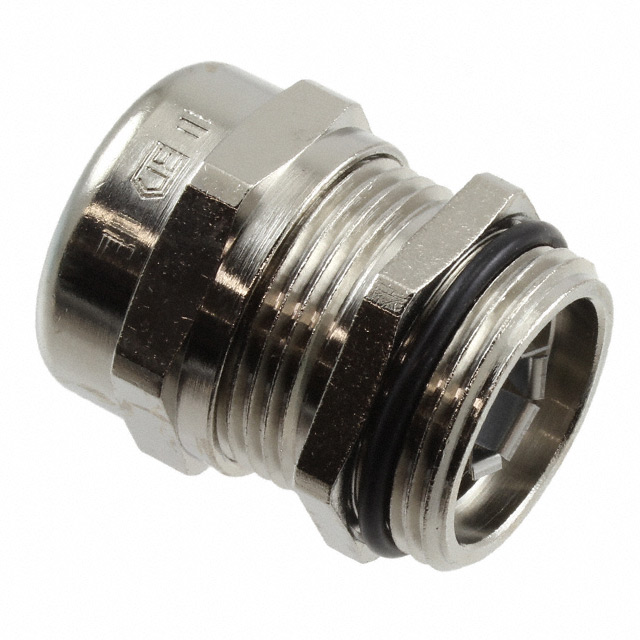

CABLE GLAND 11-16MM M25 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1411190

Active

Phoenix Contact

CABLE GLAND 11-16MM M25 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1411190

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.63 "
Outside Cable Diameter (Max) [Max] [diameter]	16 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.433 in
Outside Cable Diameter (Min) [Min] [diameter]	11 mm
Thread Length	7 mm
Thread Length	0.276 in
Thread Size	M25
Type	Cable Gland

G-INSEC Series

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Material	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Thread Size	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Phoenix Contact 1411188	9 mm	0.354 in	O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	M16	IP68 - Dust Tight Waterproof	5 mm	0.197 in
Phoenix Contact 1411203		38 mm	O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	PG42	IP68 - Dust Tight Waterproof			1.181 in	30 mm	0.472 in	12 mm	1.496 in
Phoenix Contact 1411190		16 mm	O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	M25	IP68 - Dust Tight Waterproof; NEMA 4X			0.433 in	11 mm	0.276 in	7 mm	0.63 "
Phoenix Contact 1411196		8 mm	O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	PG9	IP68 - Dust Tight Waterproof	4 mm	0.157 in			0.236 in	6 mm	0.315 in
Phoenix Contact 1411191		21 mm	O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	M32	IP68 - Dust Tight Waterproof; NEMA 4X			0.551 in	14 mm	0.315 in	8 mm	0.827 in
Phoenix Contact 1411201			O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	PG29	IP68 - Dust Tight Waterproof			0.709 in	18.01 mm	0.315 in	8 mm	0.984 in	25 mm
Phoenix Contact 1411200		18.01 mm	O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	PG21	IP68 - Dust Tight Waterproof			0.512 in		0.283 in	7.2 mm	0.709 in		13 mm
Phoenix Contact 1411198		12 mm	O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	PG13.5	IP68 - Dust Tight Waterproof			0.236 in	6 mm	0.256 in	6.5 mm	0.472 in
Phoenix Contact 1411199			O-Ring Seal	Brass Nickel Plated	Cable Gland	100 °C	-40 °C	Silver	PG16	IP68 - Dust Tight Waterproof			0.394 in	10 mm	0.256 in	6.5 mm				14 mm	0.551 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.32
		10	$ 11.34
		50	$ 10.47
		100	$ 9.98
		250	$ 9.93

Description

General part information

G-INSEC Series

Cable Gland Brass, Nickel Plated M25 Silver
