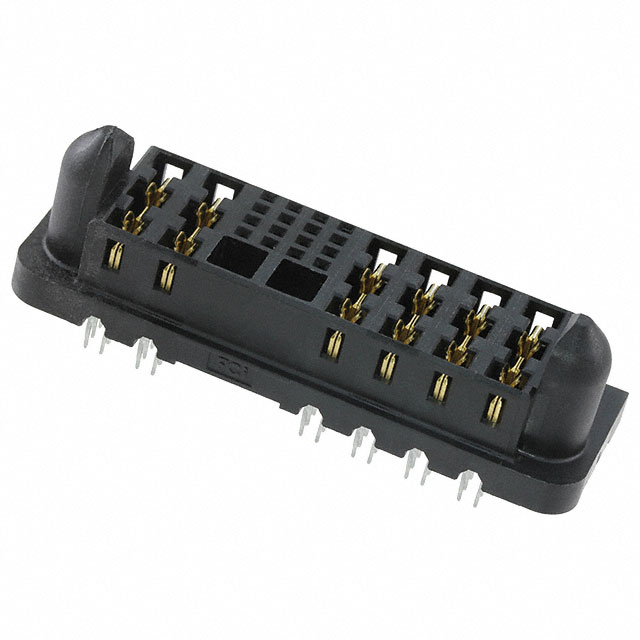

10074866-001LF

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 22POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 22POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10074866-001LF

Color	Black
Connector Style	Blade Power
Connector Type	Header, Male Pins and Blades
Connector Usage	Daughtercard
Contact Finish	GXT™, Gold or Gold
Contact Layout, Typical [custom]	16
Contact Layout, Typical [custom]	6
Features	Guide Pin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Press-Fit

Part	Number of Positions Loaded	Color	Connector Usage	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Pitch [x]	Pitch [x]	Contact Finish	Features	Mounting Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Style	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 10074866-001LF	All	Black	Daughtercard	Header Male Pins and Blades	Press-Fit	-65 ░C	105 ░C	22 positions	UL94 V-0	2.54 mm	0.1 in	Gold or Gold GXT™	Guide Pin	Through Hole	16	6	Blade Power
Amphenol ICC (FCI) 10074866-001	All	Black	Daughtercard	Blade Sockets Female Sockets Receptacle	Press-Fit	-65 ░C	105 ░C	22 positions	UL94 V-0				Guide Pin	Through Hole	16	6	Blade Power	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Connector Header, Male Pins and Blades Through Hole Black Blade Power
