Q-0K04H000R009i

Active

Amphenol Custom Cable

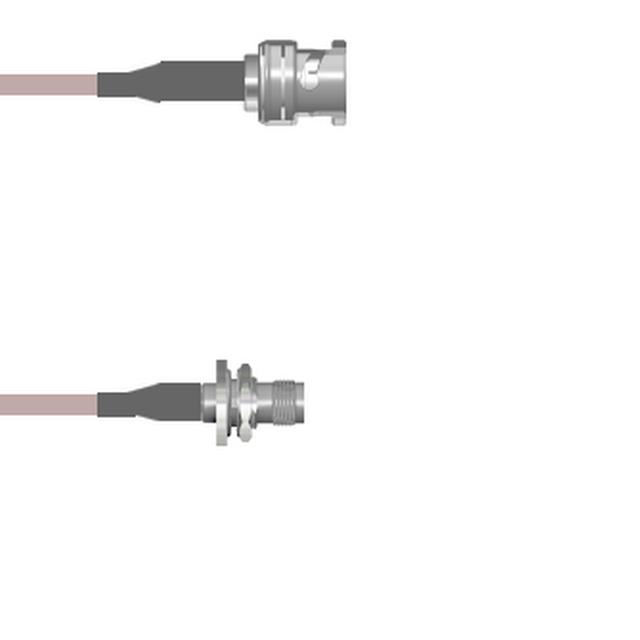

CBL ASSY BNC-TNC PLUG-JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0K04H000R009i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0K04H000R009i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0K04H0 Series

Part	Cable Type	Features	1st Connector	1st Contact Gender	2nd Connector Mounting Feature	Style	Length	Length	Length	Frequency - Max [Max]	Overall Impedance	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	2nd Connector	Color
Amphenol Custom Cable Q-0K04H000R060i	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC	5 ft	1.5 m	5 '	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R108i	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC	9 ft	2.7 m	108 in	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R006i	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC		152.4 mm	6 in	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R009i	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC		228.6 mm	9 "	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R072i	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC	6 ft	1.8 m	72 in	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R084i	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC	7 ft	2.1 m	84 in	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R2.5M	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC	8.2 '	2.5 m	98.4 in	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R0.5M	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC		50 cm	19.69 "	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R1.5M	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC	4.9 ft	1.5 m	59.1 in	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper
Amphenol Custom Cable Q-0K04H000R048i	RG-316 DB	Shielded	BNC Plug	Male	Bulkhead - Front Side Nut	BNC to TNC	4 ft	1200 mm	48 in	4 GHz	50 Ohms	Panel Mount	Female	Free Hanging (In-Line)	TNC Jack	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.05
		25	$ 82.42
		50	$ 80.79
		100	$ 79.16
		250	$ 77.53

Description

General part information

Q-0K04H0 Series

Cable Assembly Coaxial BNC to TNC RG-316 DB 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
