LCMXO2-2000ZE-1UWG49ITRES

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 40 I/O 49WLCSP

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 40 I/O 49WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	LCMXO2-2000ZE-1UWG49ITRES

Mounting Type	Surface Mount
Number of I/O	40
Number of LABs/CLBs	264
Number of Logic Elements/Cells	2112
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C

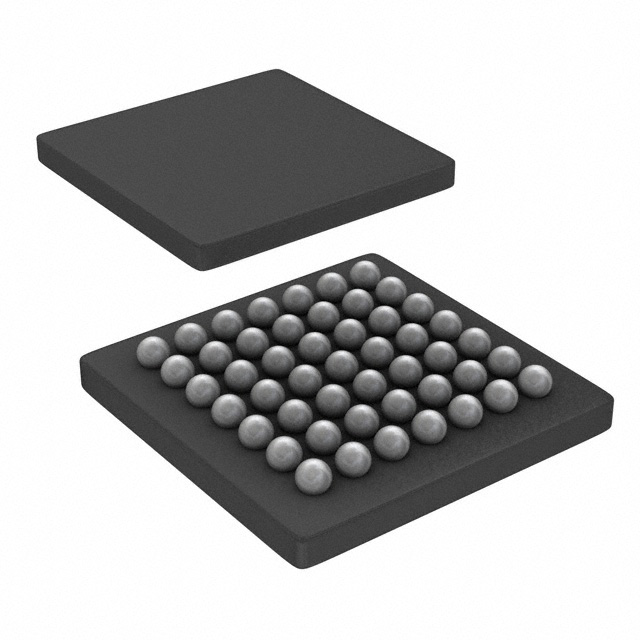

Package / Case	WLCSP, 49-UFBGA
Supplier Device Package	49-WLCSP (3.11x3.19)
Total RAM Bits [custom]	75776 Bits

Part	Mounting Type	Supplier Device Package	Number of LABs/CLBs	Operating Temperature [Max]	Operating Temperature [Min]	Number of Logic Elements/Cells	Package / Case	Total RAM Bits [custom]	Number of I/O	Total RAM Bits	Voltage - Supply [Min]	Voltage - Supply [Max]
LATTICE SEMICONDUCTOR LCMXO2-2000HE-5TG100I	Surface Mount	100-TQFP (14x14)	264	100 °C	-40 C	2112	100-LQFP	75776 Bits	79
LATTICE SEMICONDUCTOR LCMXO2-2000ZE-1FTG256I	Surface Mount	256-FTBGA (17x17)	264	100 °C	-40 C	2112	256-LBGA	75776 Bits	206 I/O
LATTICE SEMICONDUCTOR LCMXO2-2000UHE-5FG484I	Surface Mount	484-FBGA (23x23)	264	100 °C	-40 C	2112	484-BBGA		278	94208 Bits
LATTICE SEMICONDUCTOR LCMXO2-2000HE-4MG132I	Surface Mount	132-CSPBGA (8x8)	264	100 °C	-40 C	2112	132-LFBGA CSPBGA	75776 Bits	104
LATTICE SEMICONDUCTOR LCMXO2-2000HC-5MG132C	Surface Mount	132-CSPBGA (8x8)	264	85 °C	0 °C	2112	132-LFBGA CSPBGA	75776 Bits	104		2.375 V	3.465 V
LATTICE SEMICONDUCTOR LCMXO2-2000ZE-2BG256I	Surface Mount	256-CABGA (14x14)	264	100 °C	-40 C	2112	256-LFBGA	75776 Bits	206 I/O
LATTICE SEMICONDUCTOR LCMXO2-2000HC-5BG256C	Surface Mount	256-CABGA (14x14)	264	85 °C	0 °C	2112	256-LFBGA	75776 Bits	206 I/O		2.375 V	3.465 V
LATTICE SEMICONDUCTOR LCMXO2-2000HE-4FTG256C	Surface Mount	256-FTBGA (17x17)	264	85 °C	0 °C	2112	256-LBGA	75776 Bits	206 I/O
LATTICE SEMICONDUCTOR LCMXO2-2000ZE-1UWG49ITRES	Surface Mount	49-WLCSP (3.11x3.19)	264	100 °C	-40 C	2112	49-UFBGA WLCSP	75776 Bits	40
LATTICE SEMICONDUCTOR LCMXO2-2000HC-5MG132I	Surface Mount	132-CSPBGA (8x8)	264	100 °C	-40 C	2112	132-LFBGA CSPBGA	75776 Bits	104		2.375 V	3.465 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MachXO2 Field Programmable Gate Array (FPGA) IC 40 75776 2112 49-UFBGA, WLCSP
