1062201

Active

SICK, Inc.

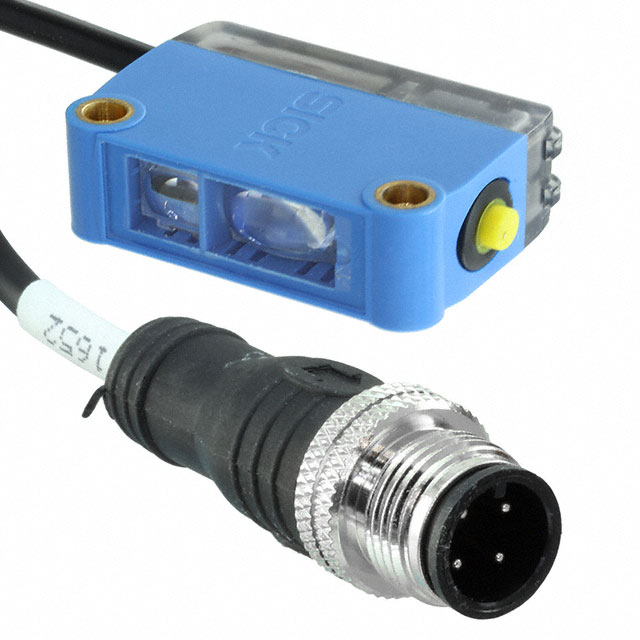

SENSOR CONTRST 12.5MM PNP M12 PT

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR CONTRST 12.5MM PNP M12 PT

Technical Specifications

Parameters and characteristics for this part

Specification	1062201

Connection Method	Cable with Connector, M12, 4POS
Ingress Protection	IP67
Light Source	RGB LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	35 µs
Sensing Distance	12.5 mm
Sensing Distance	0.492 in
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Output Configuration	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Light Source	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Response Time	Sensing Distance	Sensing Distance
SICK, Inc. 1062201	PNP - Dark-ON/Light-ON - Selectable	IP67	12 V	24 V	Cable with Connector M12 4POS	RGB LED	55 °C	-10 °C	35 µs	12.5 mm	0.492 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor 0.492" (12.5mm) PNP - Dark-ON/Light-ON - Selectable
