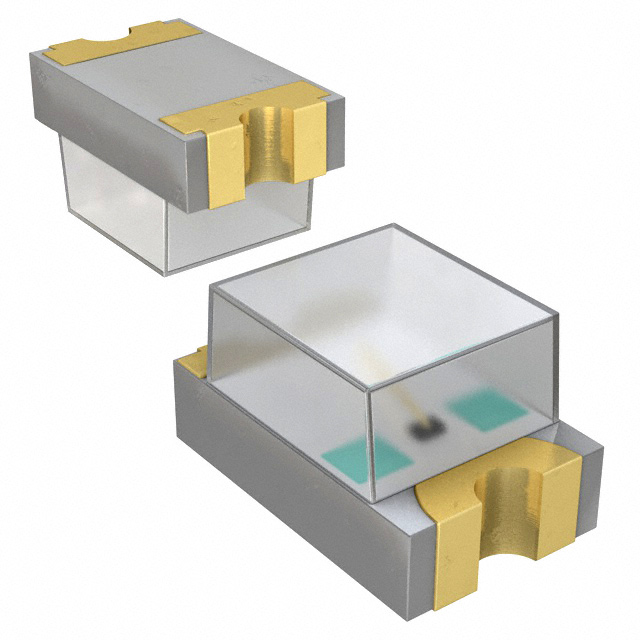

VAOL-S8GT4
ActiveVisual Communications Company - VCC
LED YLW-GRN CLEAR 0805 SMD
Deep-Dive with AI
Search across all available documentation for this part.
VAOL-S8GT4
ActiveVisual Communications Company - VCC
LED YLW-GRN CLEAR 0805 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VAOL-S8GT4 |
|---|---|
| Color | Yellow-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.3 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 27 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 573 nm |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.26 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.26 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.17 | |||
| 15000 | $ 0.16 | |||
| 30000 | $ 0.16 | |||
Description
General part information
VAOL-S8 Series
Yellow-Green 573nm LED Indication - Discrete 2V 0805 (2012 Metric)
Documents
Technical documentation and resources
No documents available
