7007-PR000-D

Obsolete

LEDdynamics Inc.

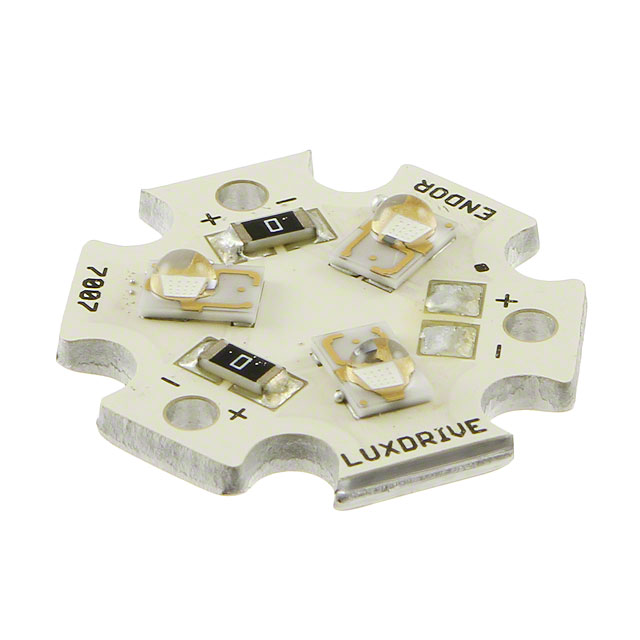

LED MOD ENDOR STAR RED STARBRD

Search across all available documentation for this part.

Obsolete

LEDdynamics Inc.

LED MOD ENDOR STAR RED STARBRD

Technical Specifications

Parameters and characteristics for this part

Specification	7007-PR000-D

Color	Red
Configuration	Starboard
Current - Max [Max]	700 mA
Current - Test	350 mA
Height [z]	3.58 mm
Lens Type	Domed
Luminous Flux @ Current/Temperature	20 lm
Size / Dimension [diameter]	19.9 mm
Type	LED Module
Viewing Angle	120 °

Part	Size / Dimension [diameter]	Type	Viewing Angle	Current - Test	Configuration	Current - Max [Max]	Color	Height [z]	Luminous Flux @ Current/Temperature	Lens Type
LEDdynamics Inc. 7007-PR000-D	19.9 mm	LED Module	120 °	350 mA	Starboard	700 mA	Red	3.58 mm	20 lm	Domed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Endor Star™ Red Starboard

Technical documentation and resources

No documents available
