19307061540
ActiveHARTING Technology Group

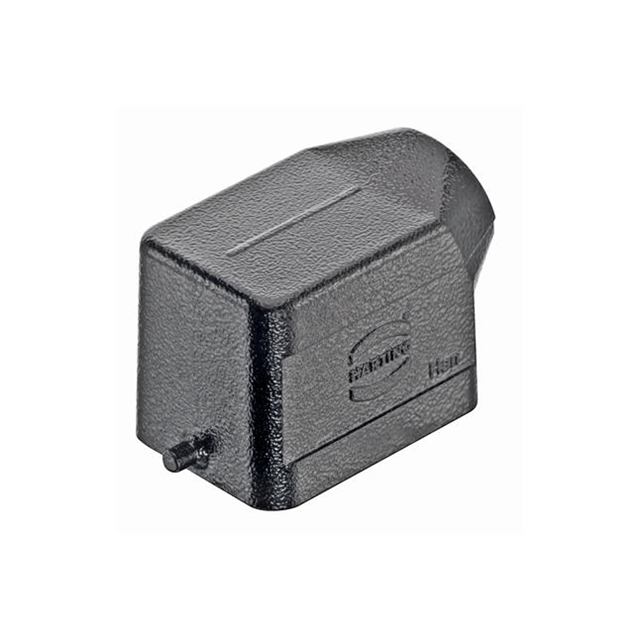

6B HOOD SIDE ENTRY, SINGLE LEVER, LOW CONSTRUCTION, M20 - BLACK
Deep-Dive with AI
Search across all available documentation for this part.
19307061540
ActiveHARTING Technology Group
6B HOOD SIDE ENTRY, SINGLE LEVER, LOW CONSTRUCTION, M20 - BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19307061540 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP66, IP67, IP65 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6B |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [z] | 46 mm |
| Size / Dimension [z] | 1.811 in |
| Style | Side Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19307061 Series
Hood Connector Side Entry M20 6B IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof
