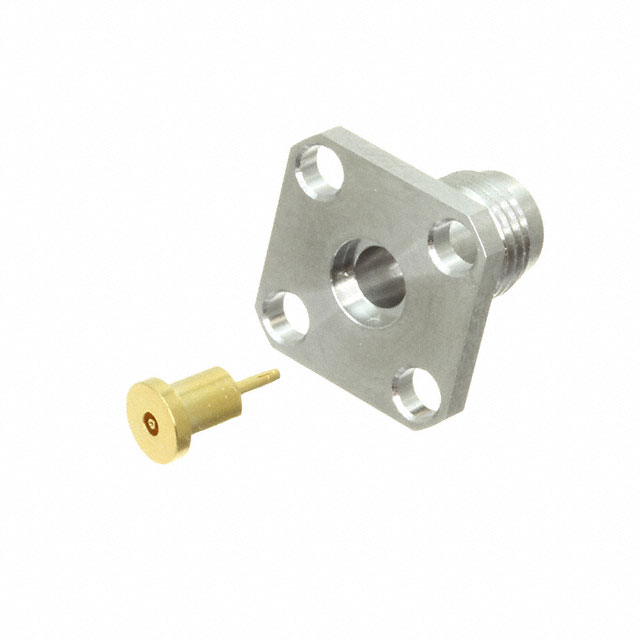

08K422-800S5

Active

Rosenberger

CONN RPC1.85 JACK STR 50OHM COMP

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC1.85 JACK STR 50OHM COMP

Technical Specifications

Parameters and characteristics for this part

Specification	08K422-800S5

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polystyrene (PS)
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	70 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	150 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Voltage Rating	Center Contact Material	Features	Housing Color	Center Contact Plating	Frequency - Max [Max]	Mating Cycles	Number of Ports	Shield Termination	Connector Type	Mounting Feature	Contact Termination	Impedance	Body Material	Dielectric Material
Rosenberger 08K422-800S5	85 °C	-40 °C	1.85 mm	150 VDC	Beryllium Copper	Field Replaceable For Hermetically Sealed Pin	Silver	Gold	70 GHz	500	1	Solder	Female Socket Jack	Flange	Compression	50 Ohms	Stainless Steel	Polystyrene (PS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	100	$ 87.75

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
