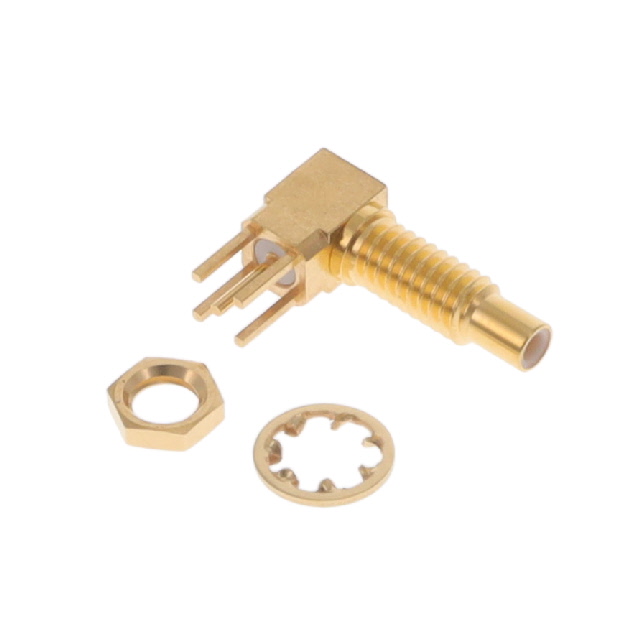

7110-1511-000
ActiveRadiall USA, Inc.
SSMC M RA BHD PCB
Deep-Dive with AI
Search across all available documentation for this part.
7110-1511-000
ActiveRadiall USA, Inc.
SSMC M RA BHD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7110-1511-000 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMC |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.57 | |
| 10 | $ 34.66 | |||
| 25 | $ 33.16 | |||
| 50 | $ 32.09 | |||
| 100 | $ 31.02 | |||
| 250 | $ 29.31 | |||
Description
General part information
7110-1511 Series
SSMC Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole, Right Angle Solder
