170-21200

Active

HELLERMANNTYTON

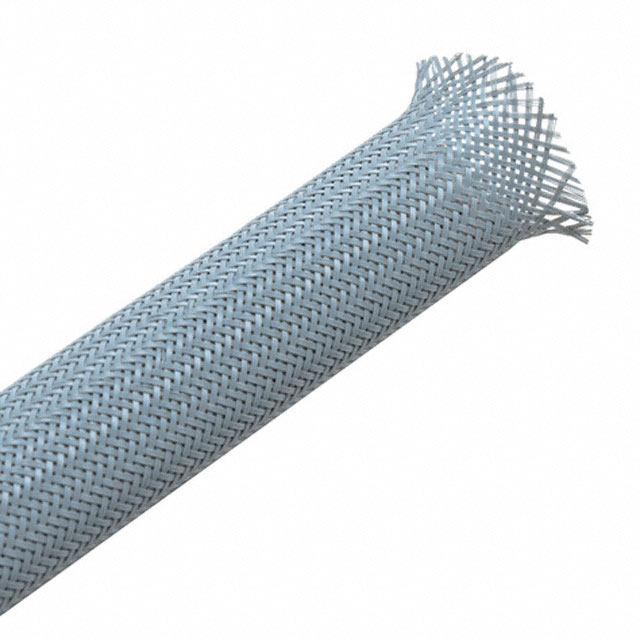

SLEEVING 0.472" X 328' GRAY

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SLEEVING 0.472" X 328' GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	170-21200

Abrasion Protection	Abrasion and Cut Resistant
Color	Gray
Diameter - Inside, Expanded [diameter]	0.551 in
Diameter - Inside, Expanded [diameter]	14 mm
Diameter - Outside, Non-Expanded [diameter]	0.472 in
Diameter - Outside, Non-Expanded [diameter]	12 mm
Features	Solvent Resistant, Salt Resistant
Heat Protection	Heat Stabilized
Length [x]	100 m
Length [x]	328 '
Liquid Protection	Fluid Resistant, Gasoline Resistant, Moisture Resistant
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Type	Sleeve
Type Attributes	Expandable

Part	Length [x]	Length [x]	Type	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Material	Heat Protection	Features	Color	Abrasion Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Liquid Protection
HELLERMANNTYTON 170-21200	100 m	328 '	Sleeve	0.551 in	14 mm	0.472 in	12 mm	Expandable	Polyamide (PA66) Nylon 6/6 Halogen Free	Heat Stabilized	Salt Resistant Solvent Resistant	Gray	Abrasion and Cut Resistant	150 °C	-60 °C	UL94 V-2	Fluid Resistant Gasoline Resistant Moisture Resistant
HELLERMANNTYTON 170-21000	100 m	328 '	Sleeve	0.472 in	12 mm	0.394 in	10 mm	Expandable	Polyamide (PA66) Nylon 6/6 Halogen Free	Heat Stabilized	Salt Resistant Solvent Resistant	Gray	Abrasion and Cut Resistant	150 °C	-60 °C	UL94 V-2	Fluid Resistant Gasoline Resistant Moisture Resistant
