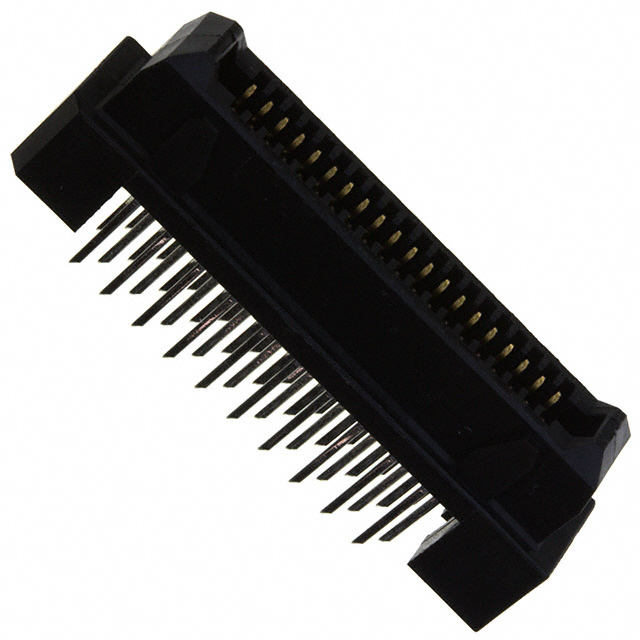

TX24-40R-10ST-H1E

Active

JAE Electronics

CONN RCPT 40POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 40POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-40R-10ST-H1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	0.563 in
Height Above Board	14.3 mm
Mated Stacking Heights	18 mm, 22 mm, 16 mm
Mounting Type	Through Hole
Number of Positions	40
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Number of Rows
JAE Electronics TX24-40R-6ST-H1E	40	0.05 in	1.27 mm	Through Hole	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	12 mm 14 mm 18 mm	2
JAE Electronics TX24-40R-10ST-H1E	40	0.05 in	1.27 mm	Through Hole	0.563 in	14.3 mm	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	16 mm 18 mm 22 mm	2
JAE Electronics TX24-40R-6ST-E1E	40	0.05 in	1.27 mm	Through Hole	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	12 mm 14 mm 18 mm	2
JAE Electronics TX24-40R-12ST-H1E	40	0.05 in	1.27 mm	Through Hole	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	18 mm 20 mm 24 mm	2
JAE Electronics TX24-40R-LT-H1E	40	0.05 in	1.27 mm	Through Hole Right Angle	0.354 in	9 mm	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	Gold		2
JAE Electronics TX24-40R-12ST-N1E	40	0.05 in	1.27 mm	Through Hole	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	18 mm 20 mm 24 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 1.23

General part information

40 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
