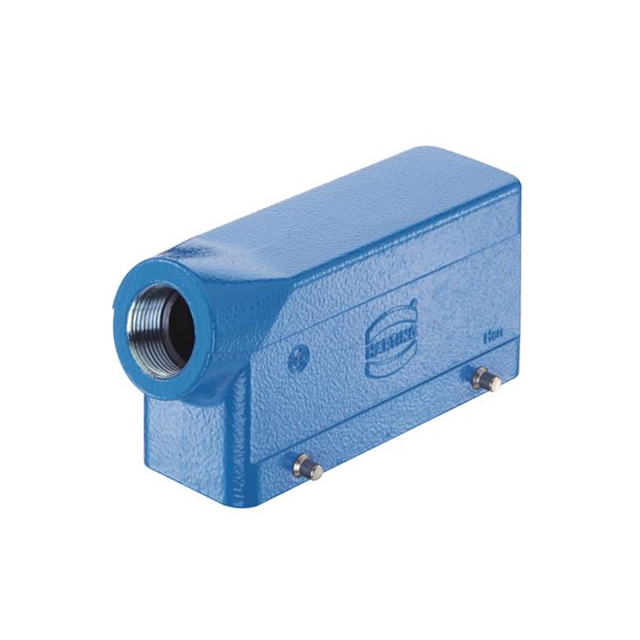

24B HP SCREW DOWN HOOD, SIDE ENTRY, PG29

Search across all available documentation for this part.

Active

HARTING Technology Group

24B HP SCREW DOWN HOOD, SIDE ENTRY, PG29

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Lock Location	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Ingress Protection	Housing Material	Size	Housing Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
HARTING Technology Group 09390240801	Hood	Screw Locks on Hood	Bottom Entry	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm
HARTING Technology Group 09390240407	Hood	Screw Locks on Hood	Top Entry	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	PG29
HARTING Technology Group 09390240506	Hood	Screw Locks on Hood	Side Entry	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	PG21
HARTING Technology Group 09390240507	Hood	Screw Locks on Hood	Side Entry	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	PG29
HARTING Technology Group 09390240310	Base - Panel Mount	Screw Locks on Hood	Bottom Entry	140 mm	65.6 mm	28.2 mm		125 °C	-40 °C	Powder Coated	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Aluminum Die Cast	24 B	Gray	1.11 in	2.583 "	5.512 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry PG29
