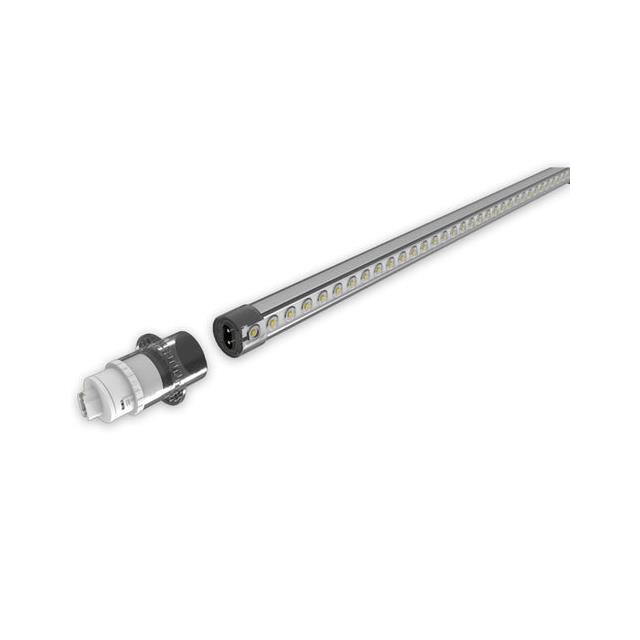

152734

Obsolete

Beyond LED Technology

LED ENG CL WHT LNR STRIP 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

152734

Obsolete

Beyond LED Technology

LED ENG CL WHT LNR STRIP 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	152734

CCT (K)	6500 K
Color	Cool, White
Configuration	Linear Light Strip, Plug and Play
CRI (Color Rendering Index)	80
Height [z]	26.67 mm
Lens Type	Tubular
Lumens/Watt @ Current - Test	125 lm/W
Luminous Flux @ Current/Temperature	2313 lm
Size / Dimension [x]	42 in
Type	LED Engine
Voltage - Forward (Vf) (Typ)	198.5 VAC

- Series

Part	Configuration	Type	Height [z]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Color	Lumens/Watt @ Current - Test	Size / Dimension [x]	CCT (K)	Lens Type	Luminous Flux @ Current/Temperature	Viewing Angle	Size / Dimension [diameter]	CCT (K)	Features	Size / Dimension [y]	Current - Max [Max]
Beyond LED Technology 152732	Linear Light Strip Plug and Play	LED Engine	26.67 mm	80	198.5 VAC	Cool White	125 lm/W	18 in	6500 K	Tubular	908 lm
Beyond LED Technology 152733	Linear Light Strip Plug and Play	LED Engine	26.67 mm	80	198.5 VAC	Cool White	125 lm/W	30 in	6500 K	Tubular	1644 lm
Beyond LED Technology 152730	Linear Light Strip Plug and Play	LED Engine	28.7 mm	80	198.5 VAC	Cool White	125 lm/W	42 in	6500 K	Tubular	1440 lm	180 °
Beyond LED Technology 154329	Plug and Play Round	LED Module			188.5 VAC	White Cool White Neutral White Warm	100 lm/W			Flat	2200 lm		8 in	3000K 4000K 5000K	Dimming
Beyond LED Technology 152734	Linear Light Strip Plug and Play	LED Engine	26.67 mm	80	198.5 VAC	Cool White	125 lm/W	42 in	6500 K	Tubular	2313 lm
Beyond LED Technology 152727	Linear Light Strip Plug and Play	LED Engine	28.7 mm	80	198.5 VAC	Cool White	125 lm/W	304.8 mm	6500 K	Tubular	376 lm
Beyond LED Technology 153706	Flexible Linear Light Strip	LED Module			120 V	Red		50 '		Flat					IP67
Beyond LED Technology 154346	Plug and Play Round	LED Module			188.5 VAC	White Cool White Neutral White Warm	100 lm/W			Flat	3300 lm		152.4 mm	3000K 4000K 5000K	Dimming
Beyond LED Technology 153699	Linear Light Strip	LED Module	7.37 mm		12 V	Blue		70.1 mm		Flat					IP65	19.05 mm
Beyond LED Technology 153700	Linear Light Strip	LED Module	7.37 mm		12 V	Green		70.1 mm		Flat					IP65	19.05 mm	203 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 47.99

Description

General part information

- Series

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip, Plug and Play
