50.663 PA/SW

Active

Jacob GmbH

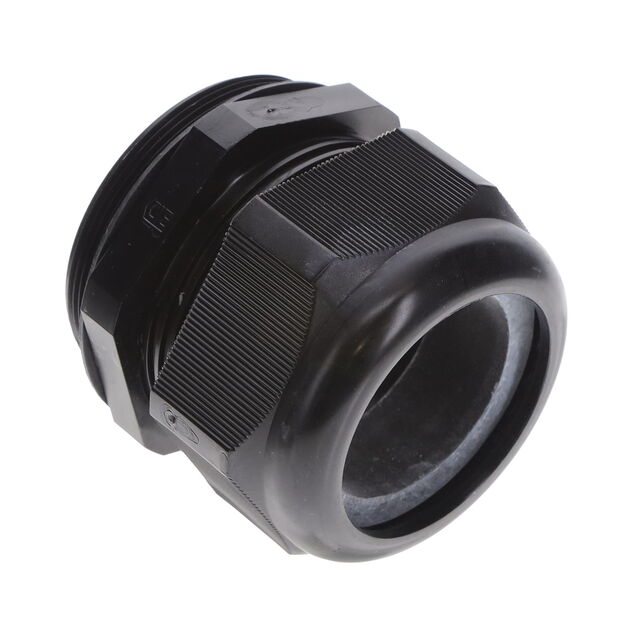

CABLE GLAND 32-42MM M63 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.663 PA/SW

Active

Jacob GmbH

CABLE GLAND 32-42MM M63 POLYAMID

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50.663 PA/SW

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	42 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.654 in
Outside Cable Diameter (Min) [Min] [diameter]	1.26 "
Outside Cable Diameter (Min) [Min] [diameter]	32 mm
Thread Length	0.472 in
Thread Length	12 mm
Type	Cable Gland

50.663 Series

Part	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Color	Type	Material	Outside Cable Diameter (Min) [Min] [diameter]
Jacob GmbH 50.663 PA/SWL	IP68 - Dust Tight Waterproof	1.26 "	32 mm	Sealing Ring	100 °C	-40 °C	42 mm	1.654 in	0.709 in	18.01 mm	Black	Cable Gland
Jacob GmbH 50.663 M1	IP68 - Dust Tight Waterproof		1.496 in	O-Ring Seal	100 °C	-40 °C	48 mm	1.89 "	0.394 in	10 mm	Silver	Cable Gland	Brass Nickel Plated	38 mm
Jacob GmbH 50.663 PA/RSW	IP68 - Dust Tight Waterproof	1.063 in	27 mm	Sealing Ring	100 °C	-40 °C	48 mm	1.89 "	0.472 in	12 mm	Black	Cable Gland
Jacob GmbH 50.663 PA7035	IP68 - Dust Tight Waterproof	1.26 "	32 mm	Sealing Ring	100 °C	-40 °C	42 mm	1.654 in	0.472 in	12 mm	Gray	Cable Gland
Jacob GmbH 50.663 M	IP68 - Dust Tight Waterproof	1.26 "	32 mm	O-Ring Seal	100 °C	-40 °C	42 mm	1.654 in	0.394 in	10 mm	Silver	Cable Gland	Brass Nickel Plated
Jacob GmbH 50.663 M/EMV	IP68 - Dust Tight Waterproof	1.26 "	32 mm	O-Ring Seal	100 °C	-40 °C	42 mm	1.654 in	0.394 in	10 mm	Silver	Cable Gland	Brass Nickel Plated
Jacob GmbH 50.663 PA/SW	IP68 - Dust Tight Waterproof	1.26 "	32 mm	Sealing Ring	100 °C	-40 °C	42 mm	1.654 in	0.472 in	12 mm	Black	Cable Gland
Jacob GmbH 50.663 PA7001	IP68 - Dust Tight Waterproof	1.26 "	32 mm	Sealing Ring	100 °C	-40 °C	42 mm	1.654 in	0.472 in	12 mm	Gray	Cable Gland
Jacob GmbH 50.663 ES	IP68 - Dust Tight Waterproof	1.26 "	32 mm	O-Ring Seal	100 °C	-40 °C	42 mm	1.654 in	0.394 in	10 mm	Silver	Cable Gland	Stainless Steel
Jacob GmbH 50.663M/EMV/L	IP68 - Dust Tight Waterproof	1.26 "	32 mm	O-Ring Seal	100 °C	-40 °C	42 mm	1.654 in	0.551 in	14 mm	Silver	Cable Gland	Brass Nickel Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.47
		10	$ 9.94
		25	$ 9.61

Description

General part information

50.663 Series

Cable Gland Polyamide (PA6), Nylon 6 M63x1.5 Black
