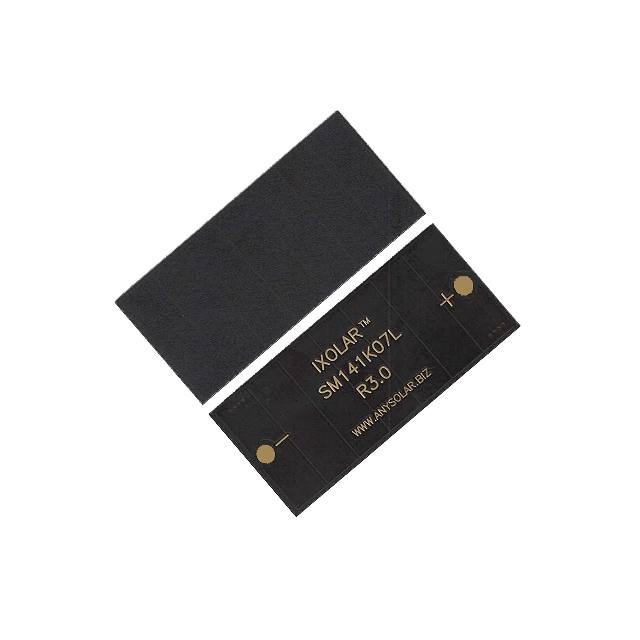

SM141K07L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 215MW 4.84V
Deep-Dive with AI
Search across all available documentation for this part.
SM141K07L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 215MW 4.84V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM141K07L |
|---|---|
| Current - Short Circuit (Isc) | 58.6 mA |
| Current @ Pmpp | 55.1 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 215 mW |
| Size / Dimension [x] | 1.969 in |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [y] | 23 mm |
| Size / Dimension [y] | 0.906 in |
| Size / Dimension [z] | 2.1 mm |
| Size / Dimension [z] | 0.083 in |
| Type | Monocrystalline |
| Voltage - Open Circuit | 4.84 V |
| Voltage @ Pmpp [custom] | 3.91 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.79 | |
| 20 | $ 5.74 | |||
| 60 | $ 5.12 | |||
| 100 | $ 4.89 | |||
| 260 | $ 4.57 | |||
| 500 | $ 4.34 | |||
Description
General part information
SM141K07 Series
Monocrystalline Solar Cell 215 mW 4.84 V
Documents
Technical documentation and resources
No documents available
