C0911KBAAJ

Active

BULGIN LIMITED

SWITCH PUSHBUTTON

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Specification	C0911KBAAJ

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	400 mA, 16 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Anti-Vandal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Type	Actuator Type	Voltage Rating - DC	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Termination Style	Circuit	Ingress Protection	Voltage Rating - AC
BULGIN LIMITED C0911KBAAJ	Anti-Vandal	Button Flush Round	125 VDC	Black	16 A 400 mA	Panel Mount Rear	On-Mom	No Marking	12.7 mm	Quick Connect - 0.250" (6.3mm)	SPDT	IP68 - Dust Tight Waterproof	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

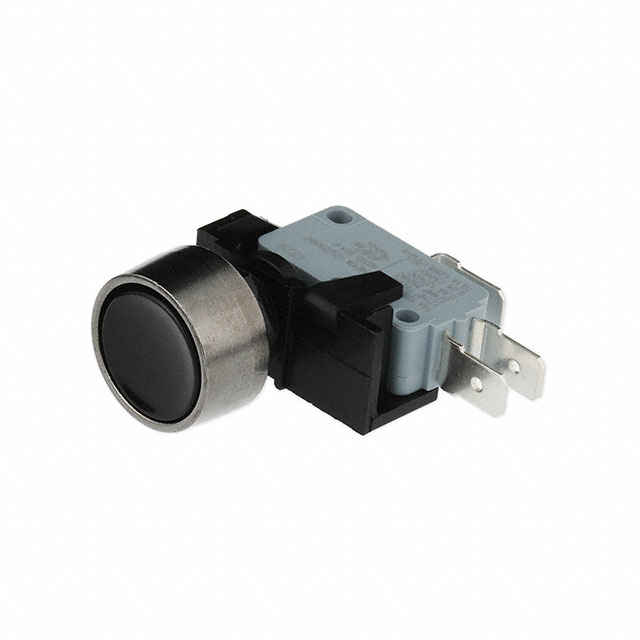

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Rear

Technical documentation and resources
