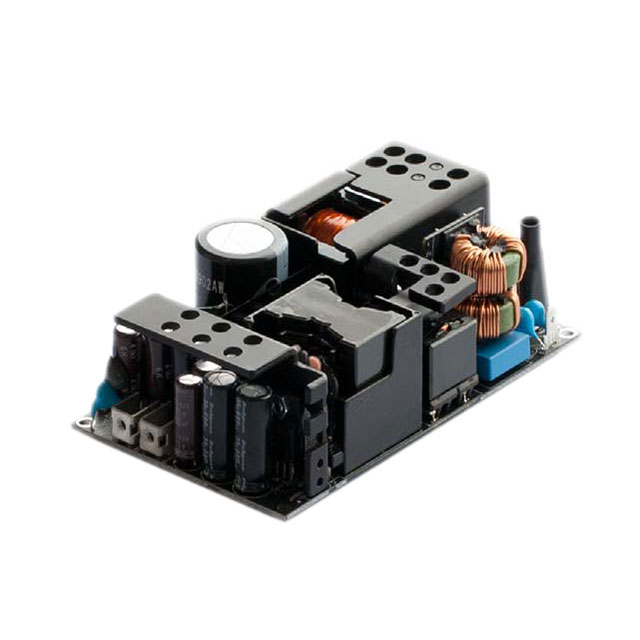

MDS-300APB48 AA

Active

Delta Electronics

AC/DC CONVERTER 48V 240W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDS-300APB48 AA

Active

Delta Electronics

AC/DC CONVERTER 48V 240W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDS-300APB48 AA

Applications	ITE (Commercial), Medical
Approval Agency	TUV, UL, SIQ, CE, EN, CB Scheme
Current - Output 1	5 A
Efficiency	93.5 %
Features	Remote On/Off, Standby Output, PFC, Universal Input, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	300 W
Power (Watts)	240 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.4 "
Size / Dimension [z]	35.6 mm
Standard Number	55011, 50581, 55032, 60950-1, 60601-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

MDS-300 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Applications	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Type	Standard Number	Current - Output 1	Mounting Type	Features	Voltage - Output 1	Approval Agency	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]
Delta Electronics MDS-300APB48 AA	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm	1	ITE (Commercial) Medical	93.5 %	90 VAC	264 VAC	4000 V	Open Frame	50581 55011 55032 60601-1 60950-1	5 A	Chassis Mount	PFC Remote On/Off Remote Sense Standby Output Universal Input	48 V	CB Scheme CE EN SIQ TUV UL	300 W	240 W	-10 °C	70 °C
Delta Electronics MDS-300ADB48 AA	140 mm	3.5 in	1.77 in	5.51 "	89 mm	45 mm	1	ITE (Commercial) Medical	93.5 %	90 VAC	264 VAC	4000 V	Enclosed	50581 55011 55032 60950-1	4.37 A	Chassis Mount	PFC Remote On/Off Remote Sense Standby Output Universal Input	48 V	CB Scheme CE EN SIQ TUV UL	300 W	190 W	-10 °C	70 °C
Delta Electronics MDS-300ADB24 AA	140 mm	3.5 in	1.77 in	5.51 "	89 mm	45 mm	1	ITE (Commercial) Medical	94 %	90 VAC	264 VAC	4000 V	Enclosed	50581 55011 55032 60601-1 60950-1	8.75 A	Chassis Mount	PFC Remote On/Off Remote Sense Standby Output Universal Input	24 V	CB Scheme CE EN SIQ TUV UL	300 W	210 W	-10 °C	70 °C
Delta Electronics MDS-300ADB18 AA	140 mm	3.5 in	1.77 in	5.51 "	89 mm	45 mm	1	ITE (Commercial) Medical	93.5 %	90 VAC	264 VAC	4000 V	Enclosed	50581 60601-1 60950-1	10.55 A	Chassis Mount	PFC Remote On/Off Remote Sense Standby Output Universal Input	18 V	CB Scheme CE EN SIQ TUV UL	300 W	190 W	-10 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 120.45

Description

General part information

MDS-300 Series

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
